Figure.7.c

A set of figures illustrating the formed invariant mass of the top-quark from jets being matched to hadronically decaying tops. The underlying distributions are partitioned into the number of jet contributions. For this matching scheme the truth children are used to add the missing the neutrinos and leptons.

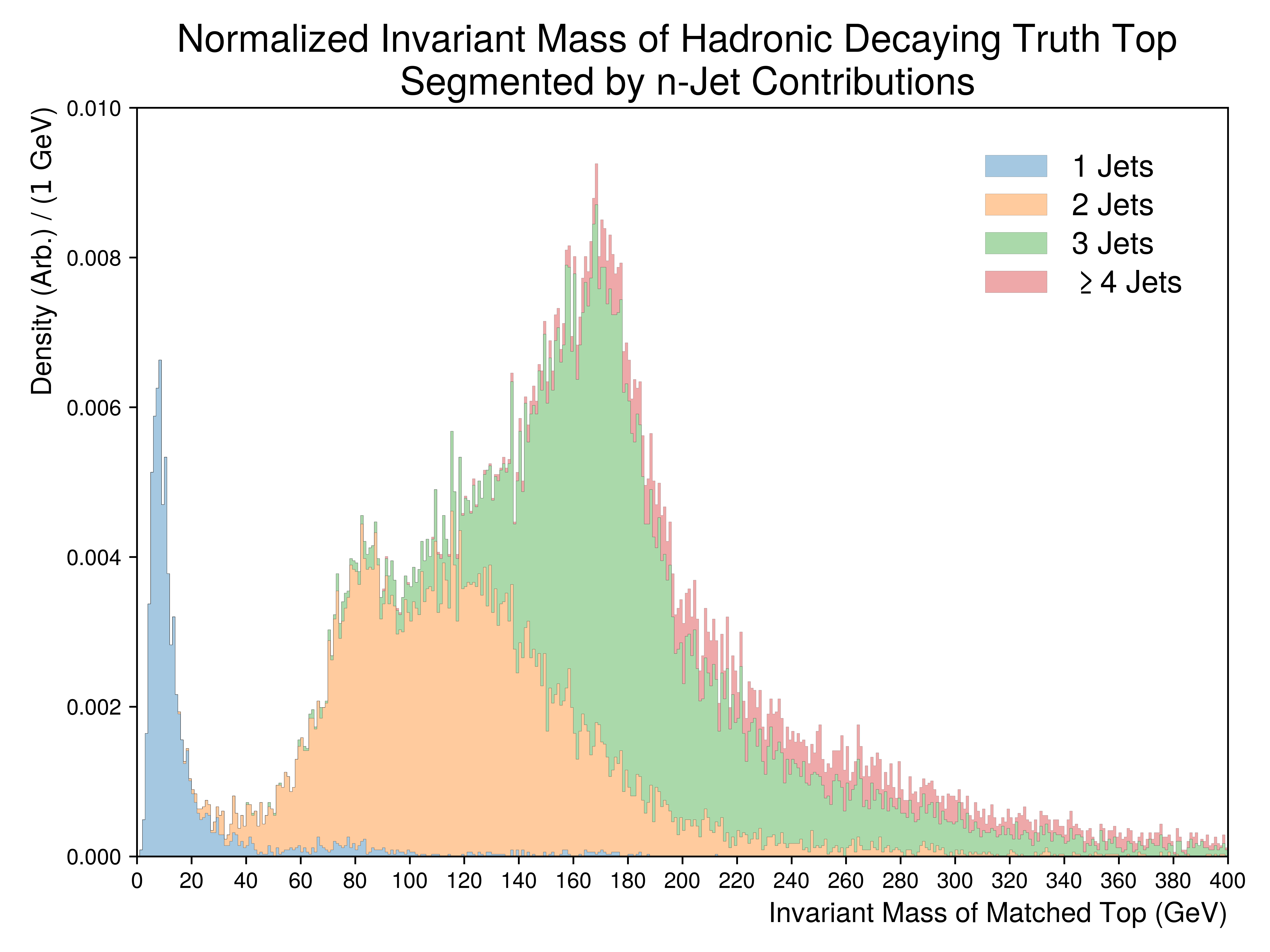

Mass Point: 400 GeV

../../../_images/Figure.7.c.png

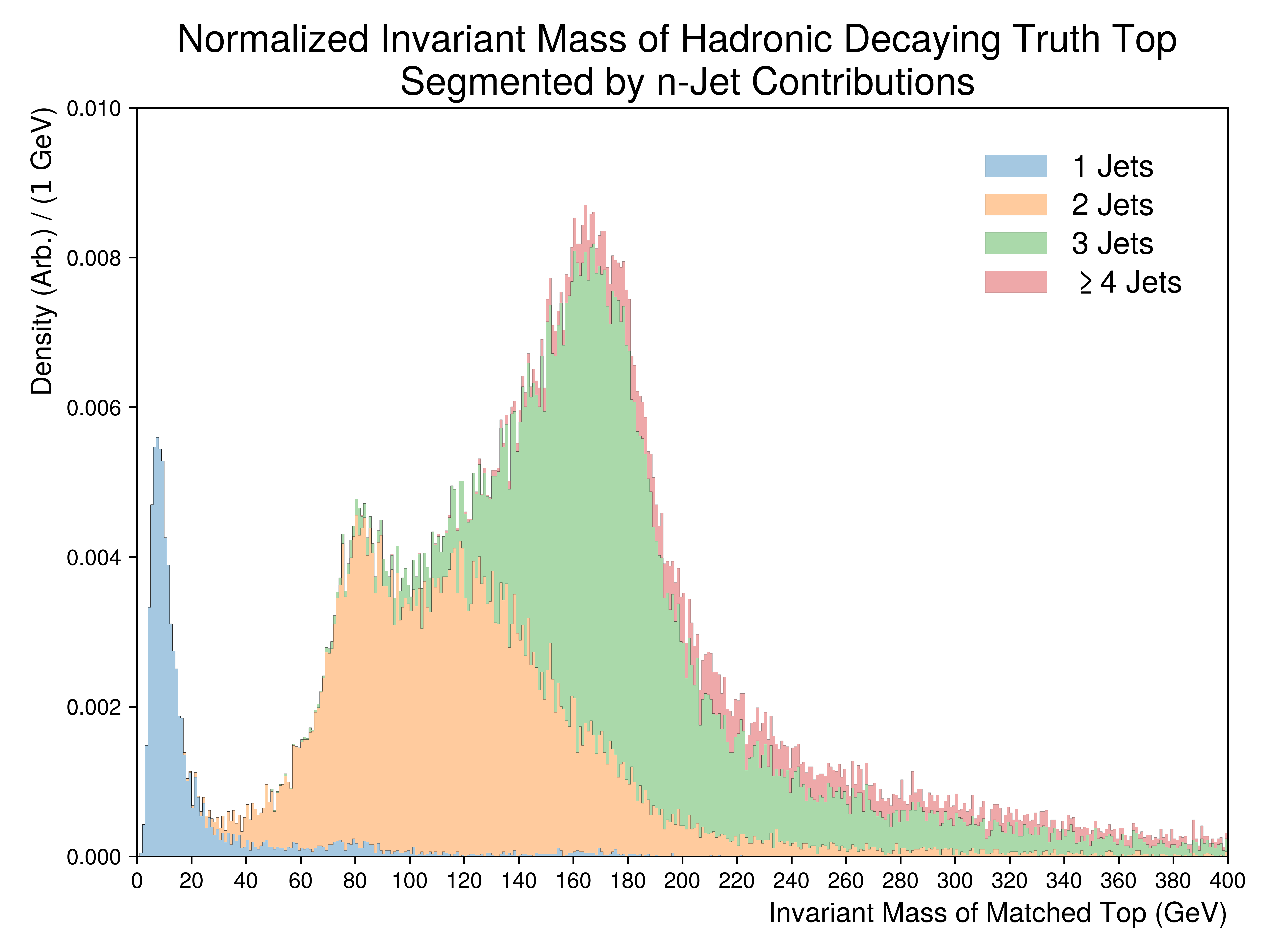

Mass Point: 500 GeV

../../../_images/Figure.7.c1.png

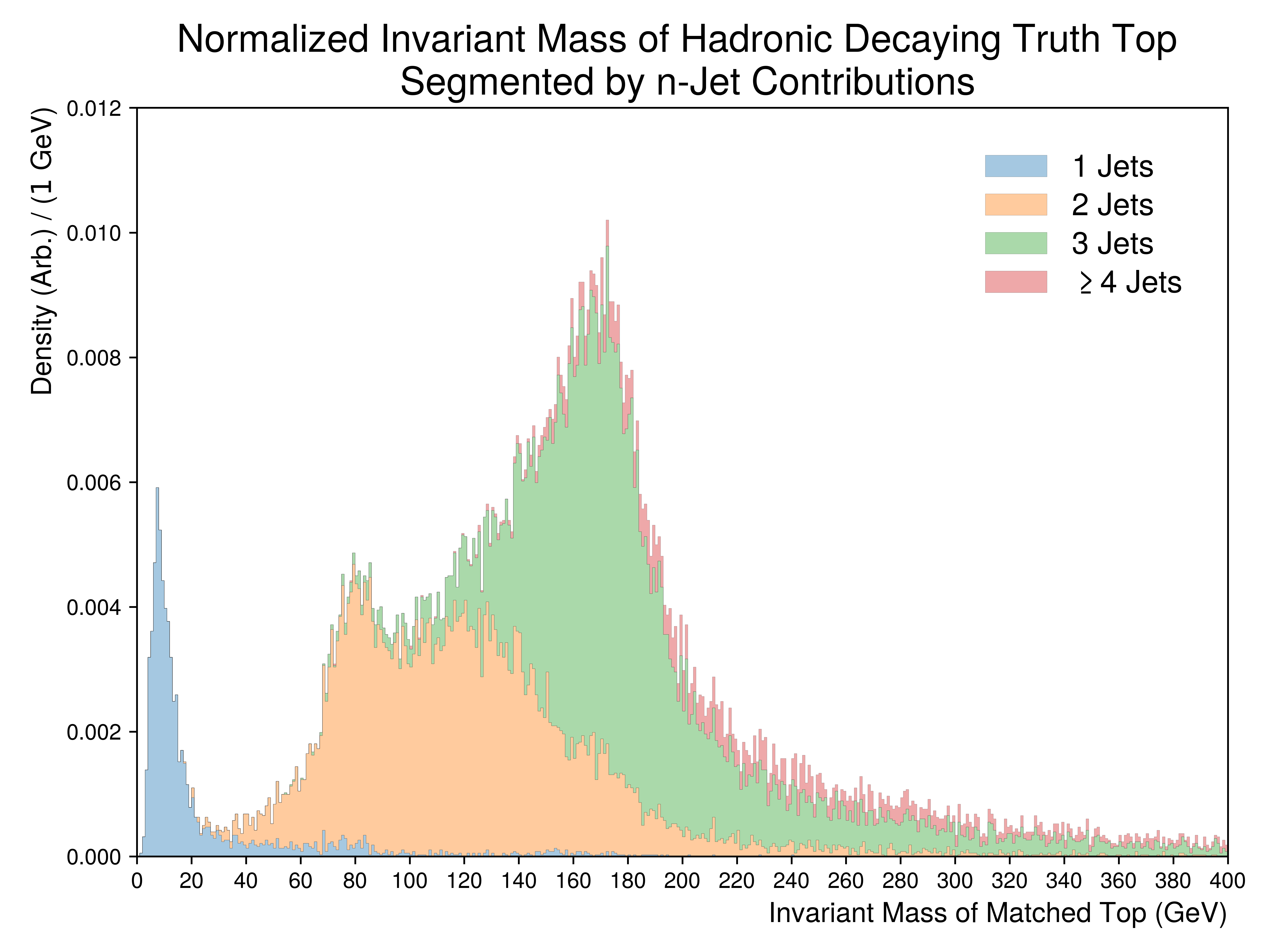

Mass Point: 600 GeV

../../../_images/Figure.7.c2.png

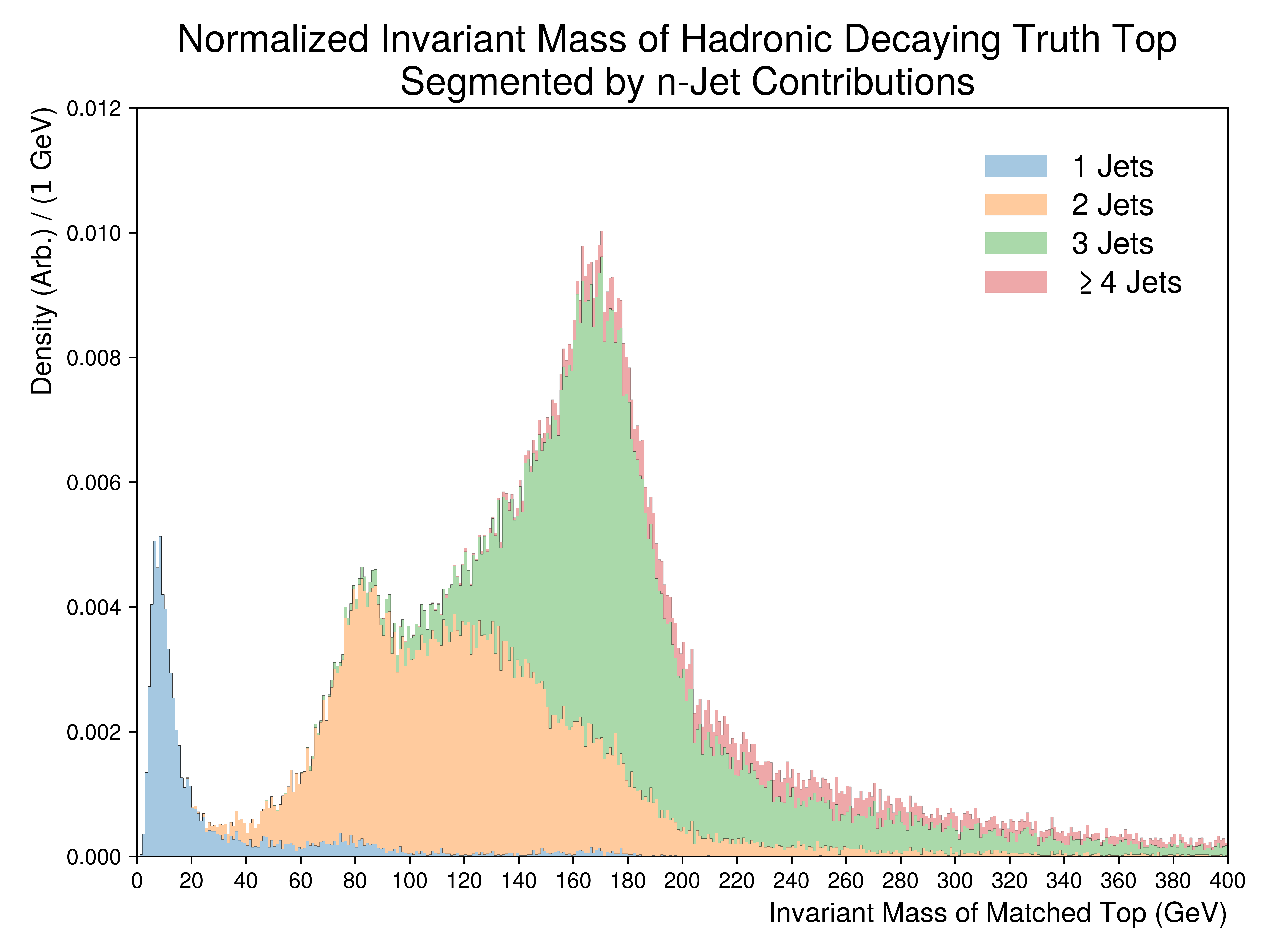

Mass Point: 700 GeV

../../../_images/Figure.7.c3.png

Mass Point: 800 GeV

../../../_images/Figure.7.c4.png

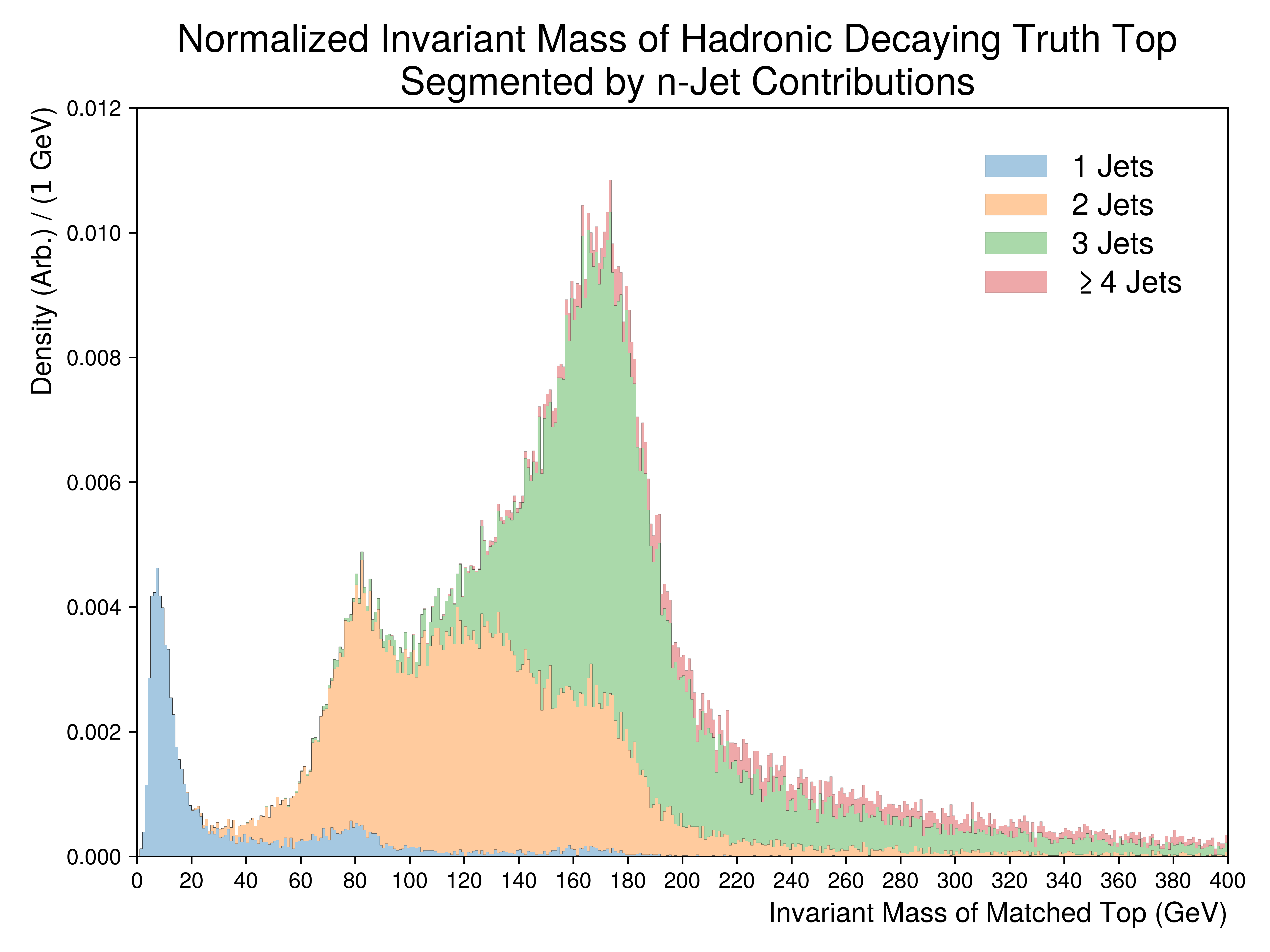

Mass Point: 900 GeV

../../../_images/Figure.7.c5.png

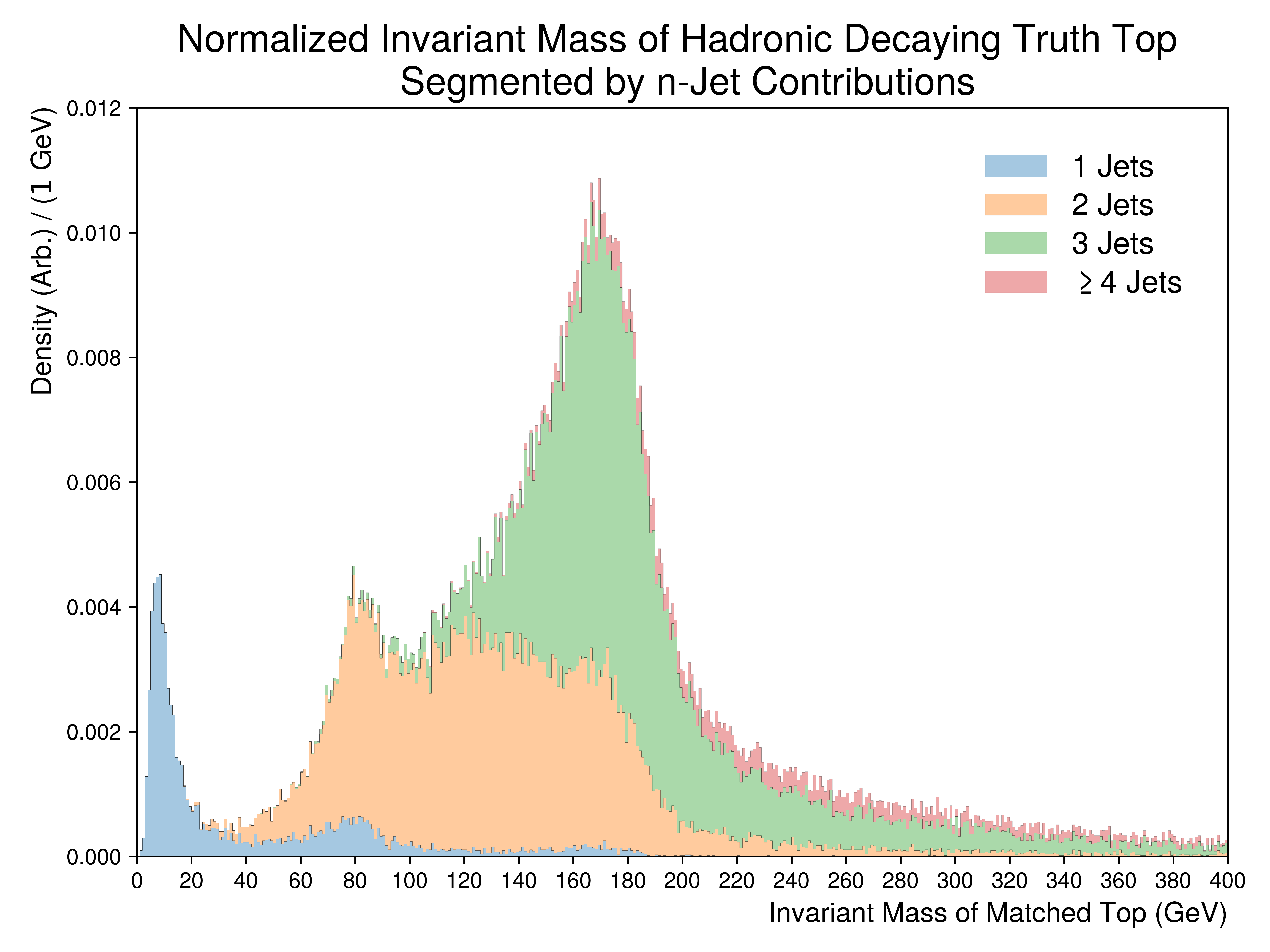

Mass Point: 1000 GeV

../../../_images/Figure.7.c6.png
