Figure.5.e

A set of figures illustrating the formed invariant mass of the top-quark from truth jets being matched to hadronically decaying tops. The underlying distributions are partitioned into the number of tops contributing to a given matched truth jet. These plots aim to demonstrate cases, where a truth jet is shared between adjacent tops.

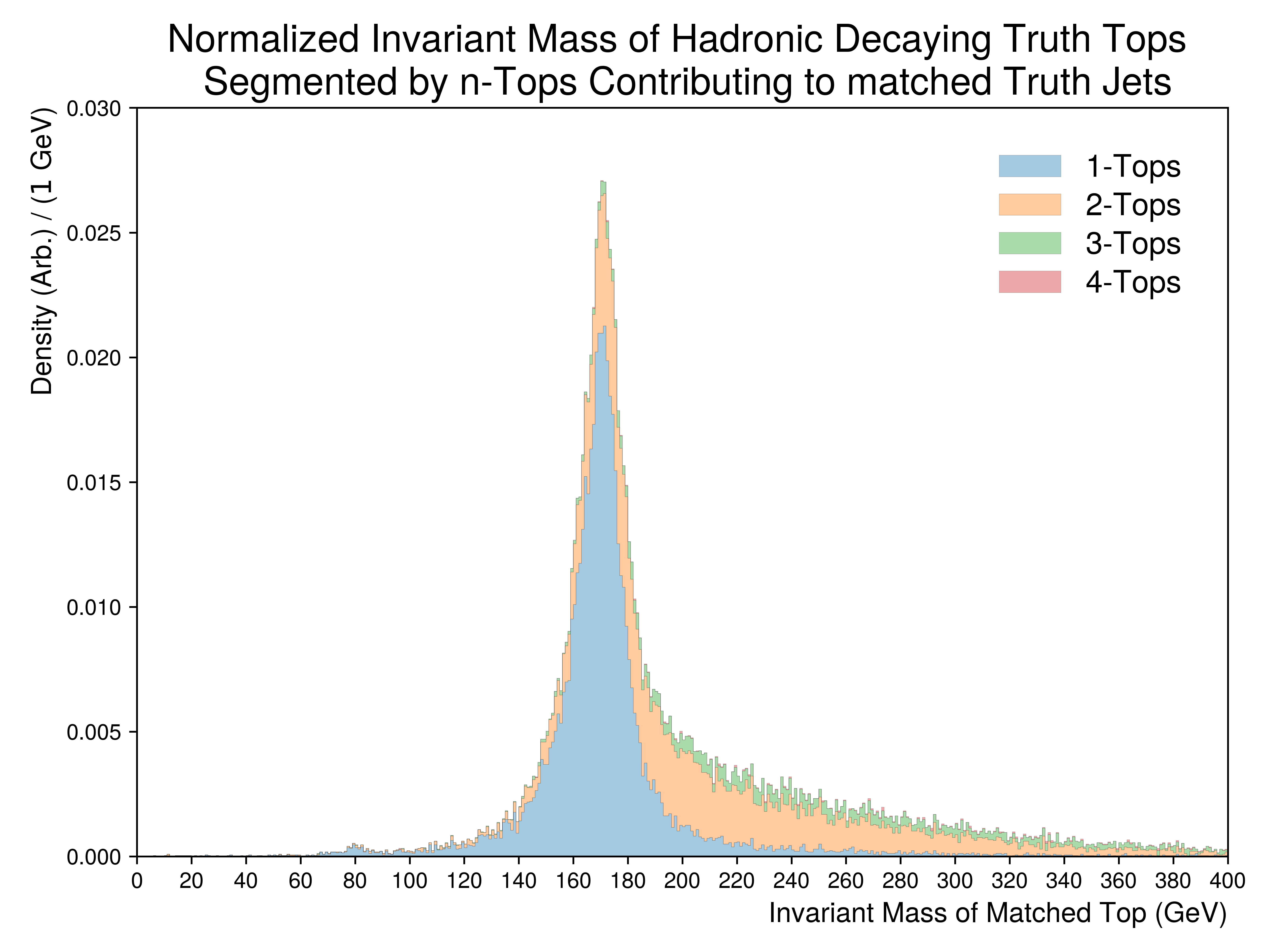

Mass Point: 400 GeV

../../../_images/Figure.5.e2.png

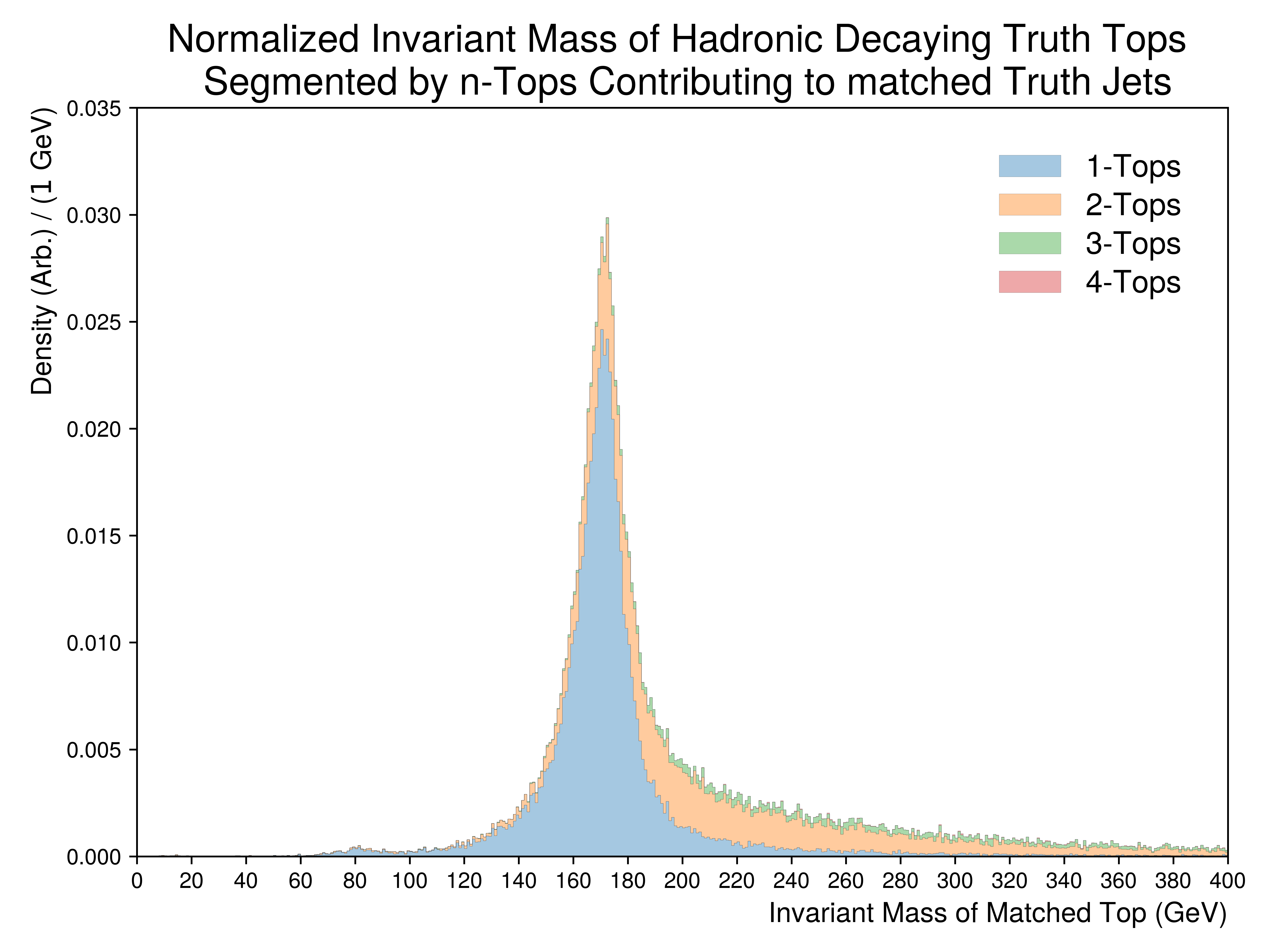

Mass Point: 500 GeV

../../../_images/Figure.5.e3.png

Mass Point: 600 GeV

../../../_images/Figure.5.e4.png

Mass Point: 700 GeV

../../../_images/Figure.5.e5.png

Mass Point: 800 GeV

../../../_images/Figure.5.e6.png

Mass Point: 900 GeV

../../../_images/Figure.5.e7.png

Mass Point: 1000 GeV

../../../_images/Figure.5.e8.png
