Figure.7.x

A set of figures depicting the ratio of multi-top energy contributions to a given jet’s Ghost Parton collection. To compute this ratio, ghost partons matched to the truth-children of tops are summed per top-quark and divided by the sum of all top-children matched to a given jet.

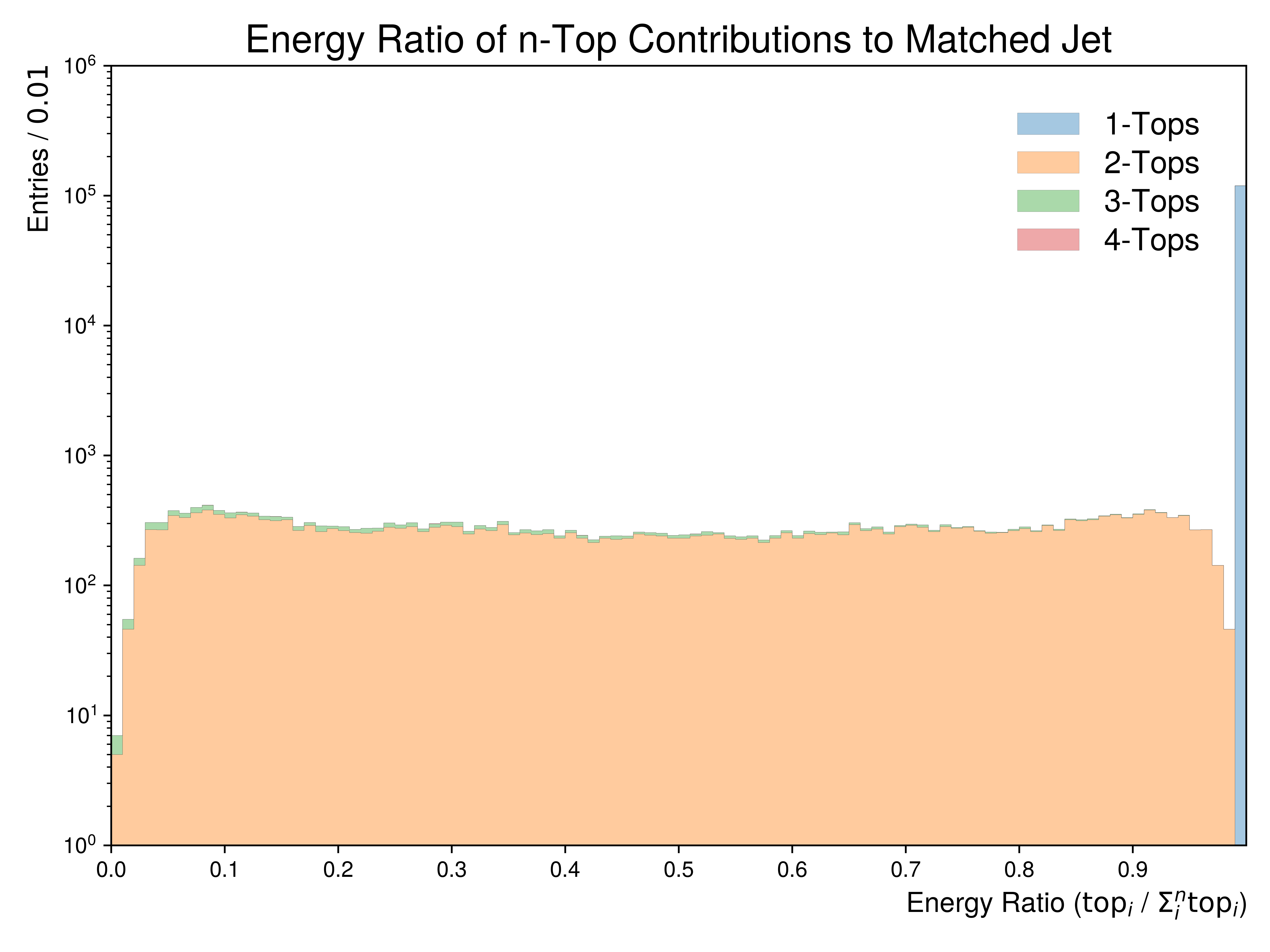

Mass Point: 400 GeV

../../../_images/Figure.7.x.png

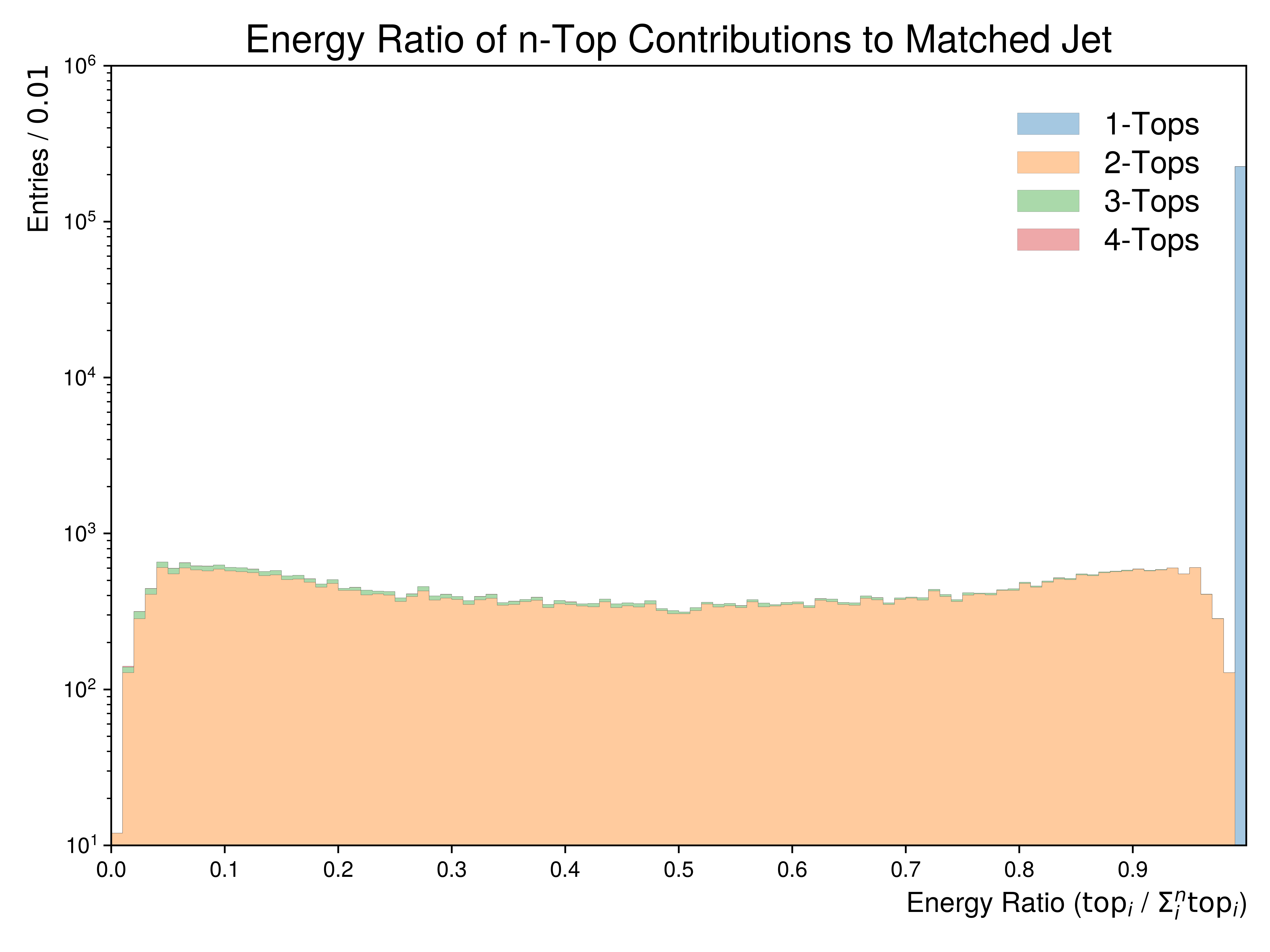

Mass Point: 500 GeV

../../../_images/Figure.7.x1.png

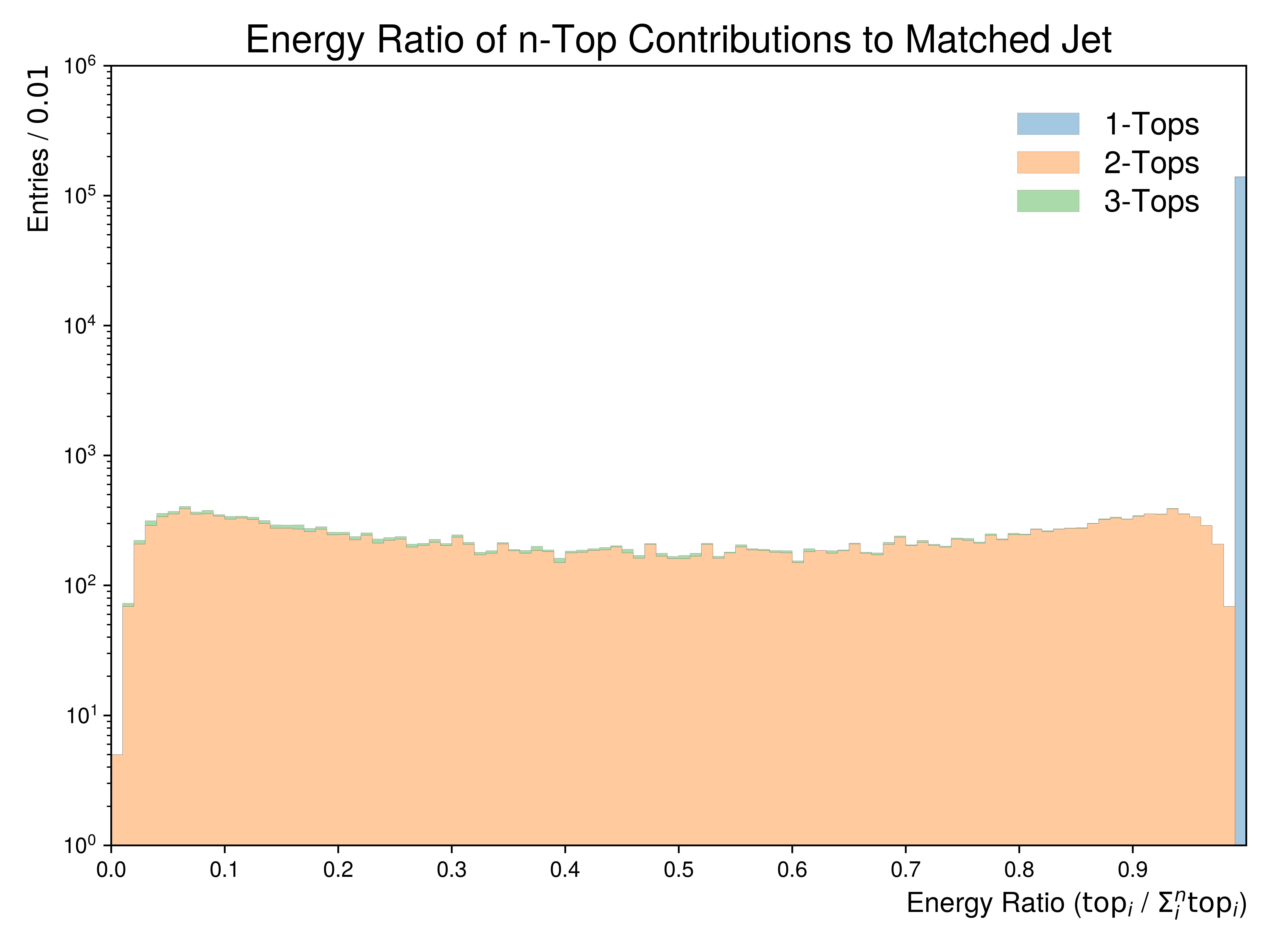

Mass Point: 600 GeV

../../../_images/Figure.7.x2.png

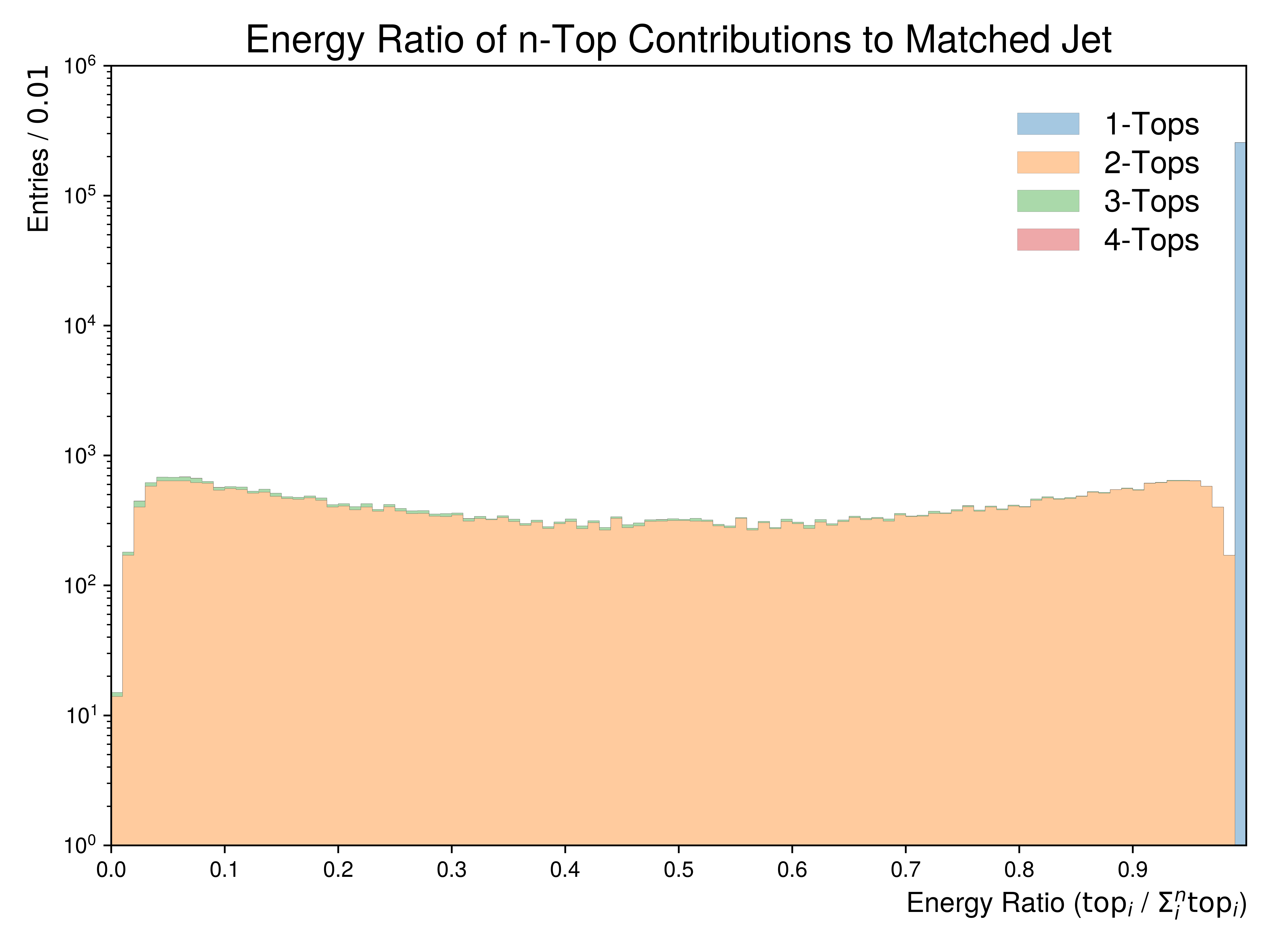

Mass Point: 700 GeV

../../../_images/Figure.7.x3.png

Mass Point: 800 GeV

../../../_images/Figure.7.x4.png

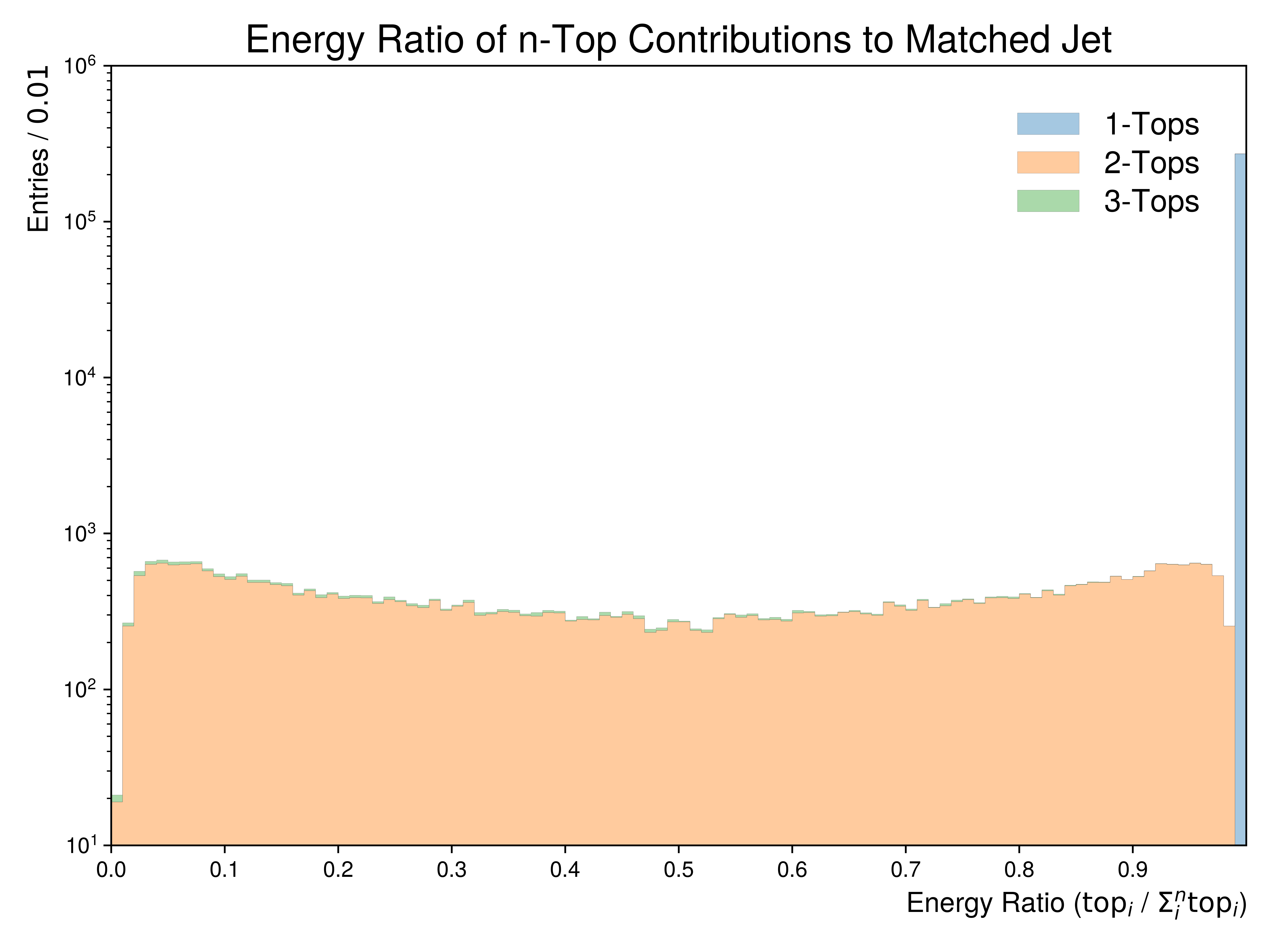

Mass Point: 900 GeV

../../../_images/Figure.7.x5.png

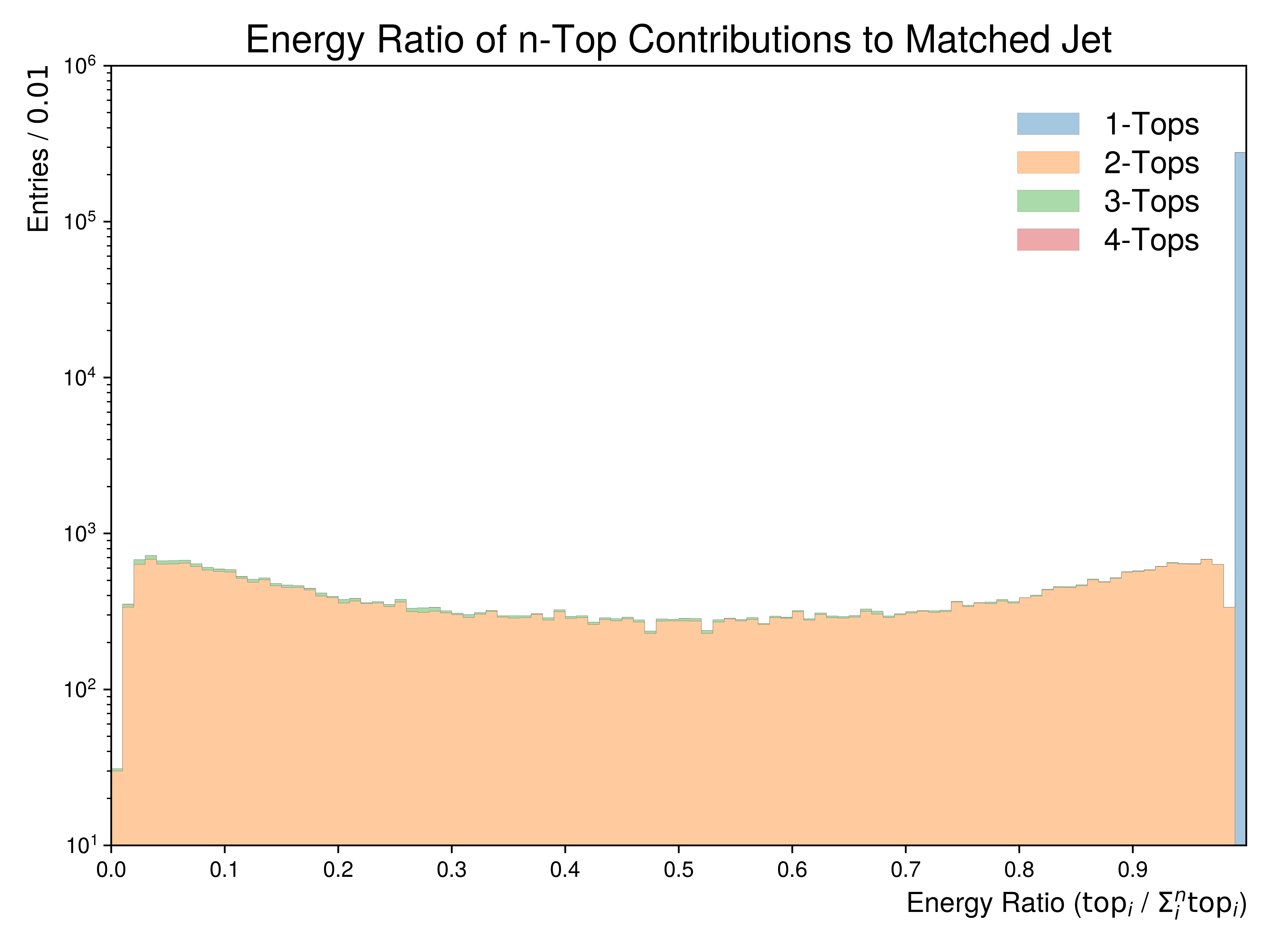

Mass Point: 1000 GeV

../../../_images/Figure.7.x6.png
