Figure 3.r

A collection of figures illustrating the fractional transverse momentum dispersed to truth children from resonance tops. The distribution is segmented into whether the PDGID of the truth child is a lepton, neutrino, light quark or b-quark or rarely a photon.

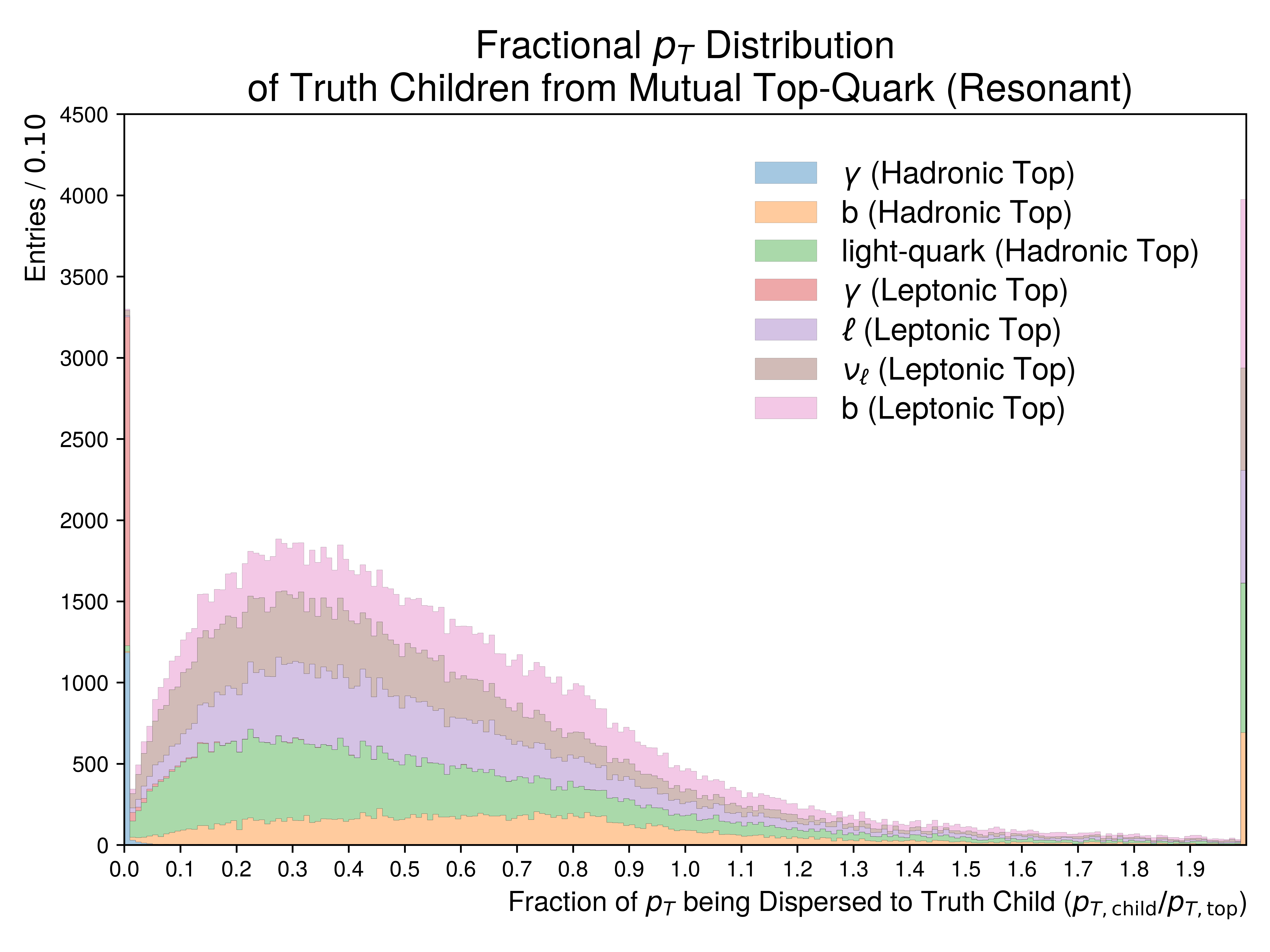

Mass Point: 400 GeV

../../../_images/Figure.3.r.png

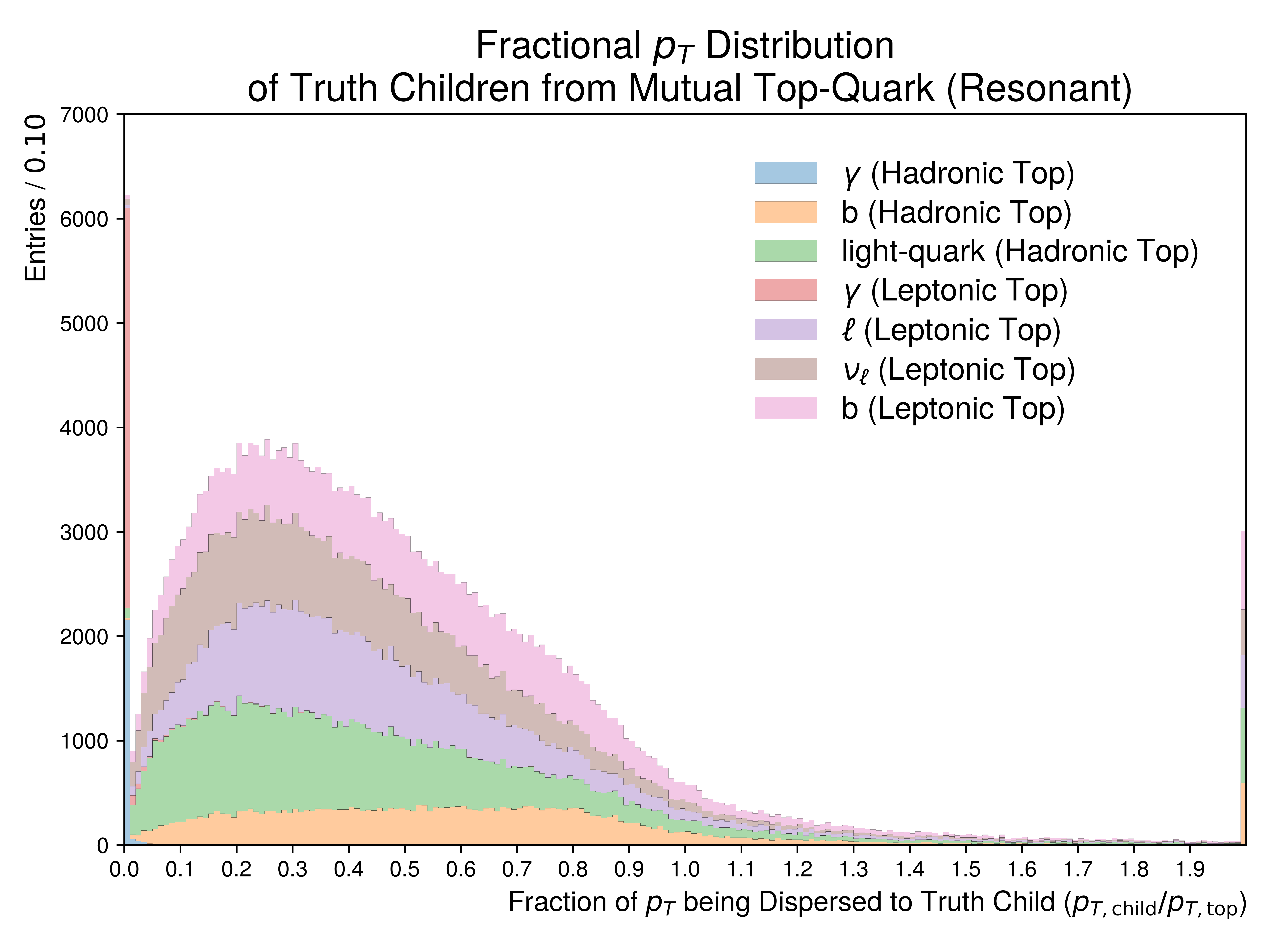

Mass Point: 500 GeV

../../../_images/Figure.3.r1.png

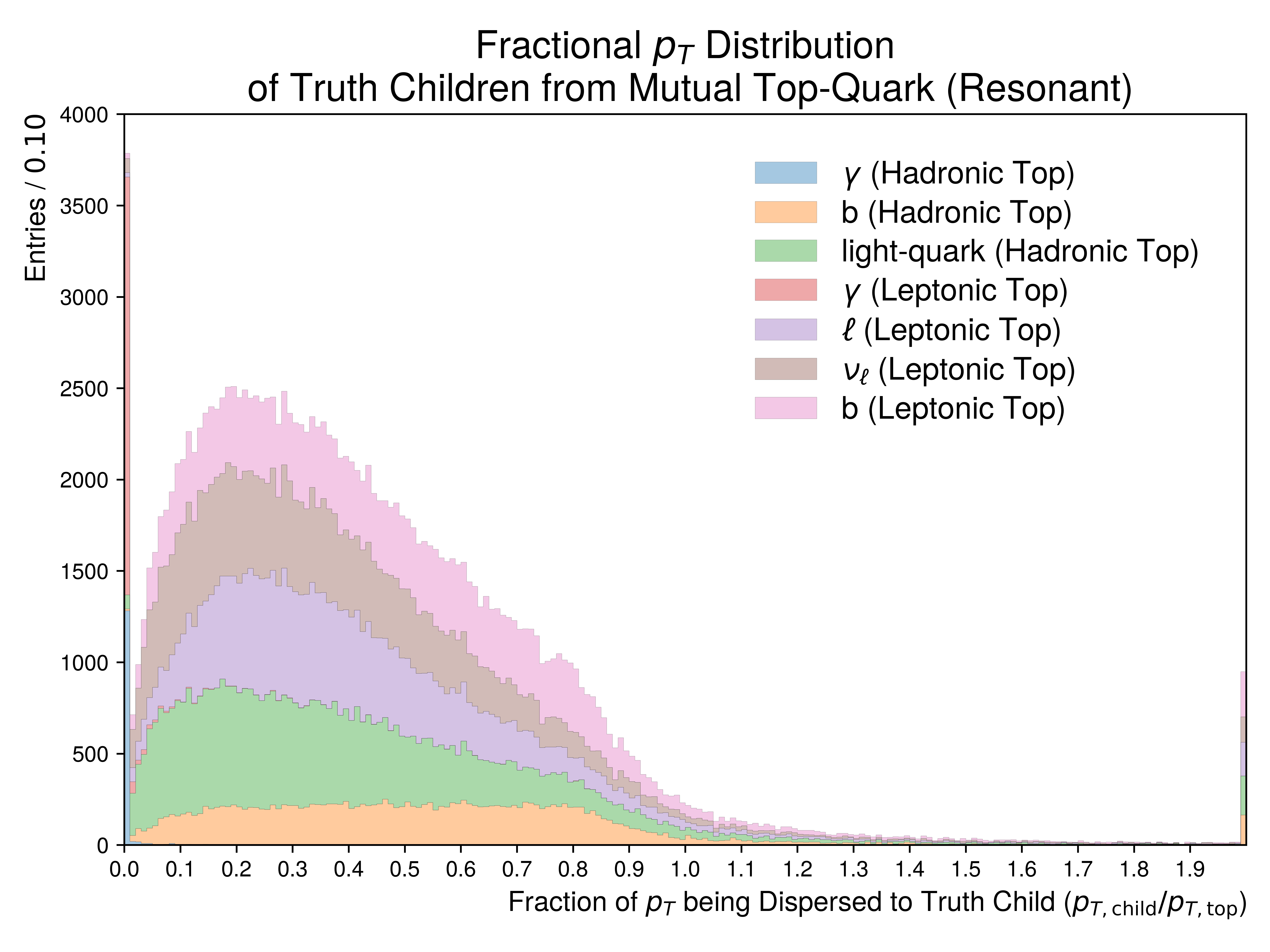

Mass Point: 600 GeV

../../../_images/Figure.3.r2.png

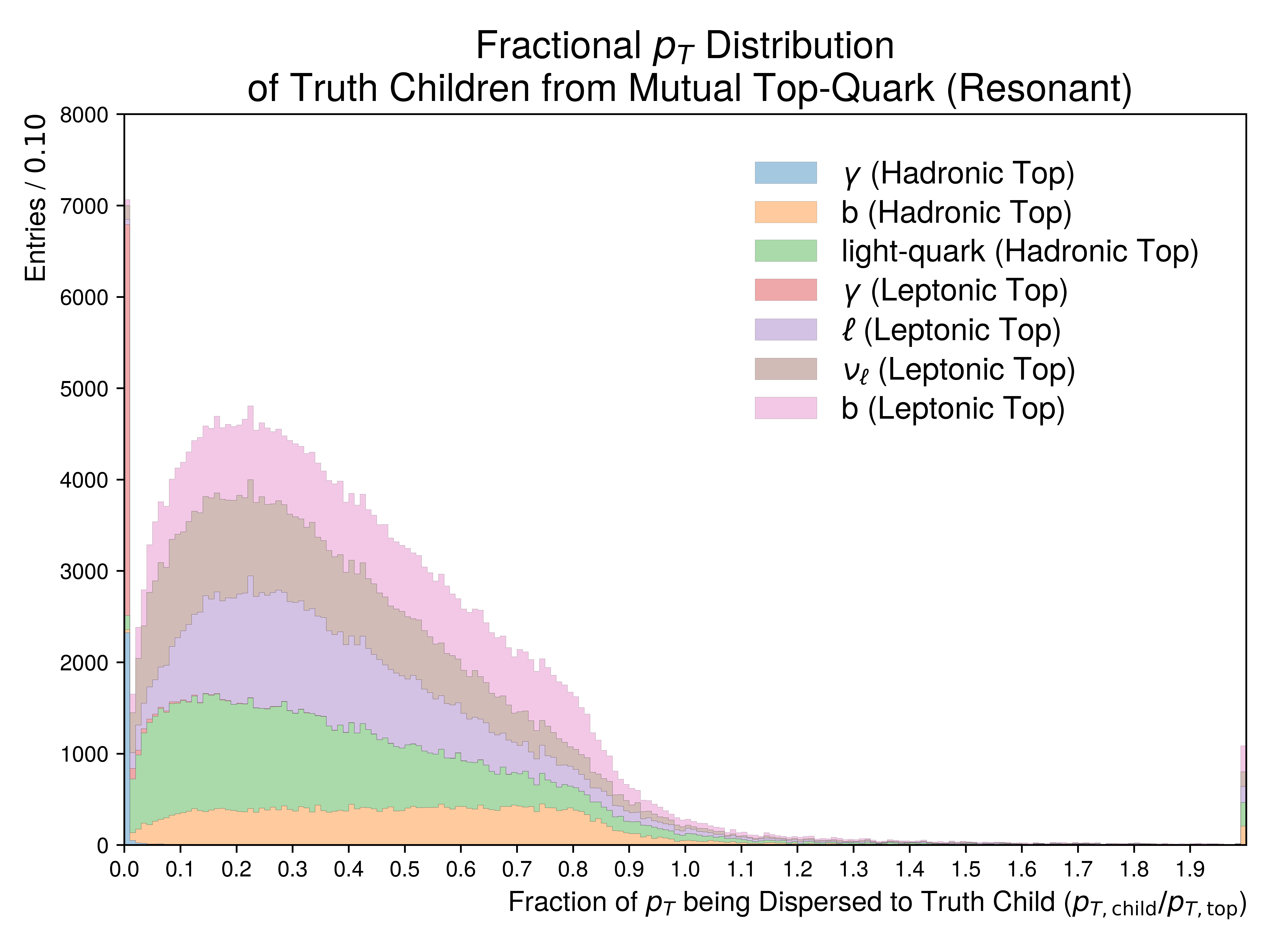

Mass Point: 700 GeV

../../../_images/Figure.3.r3.png

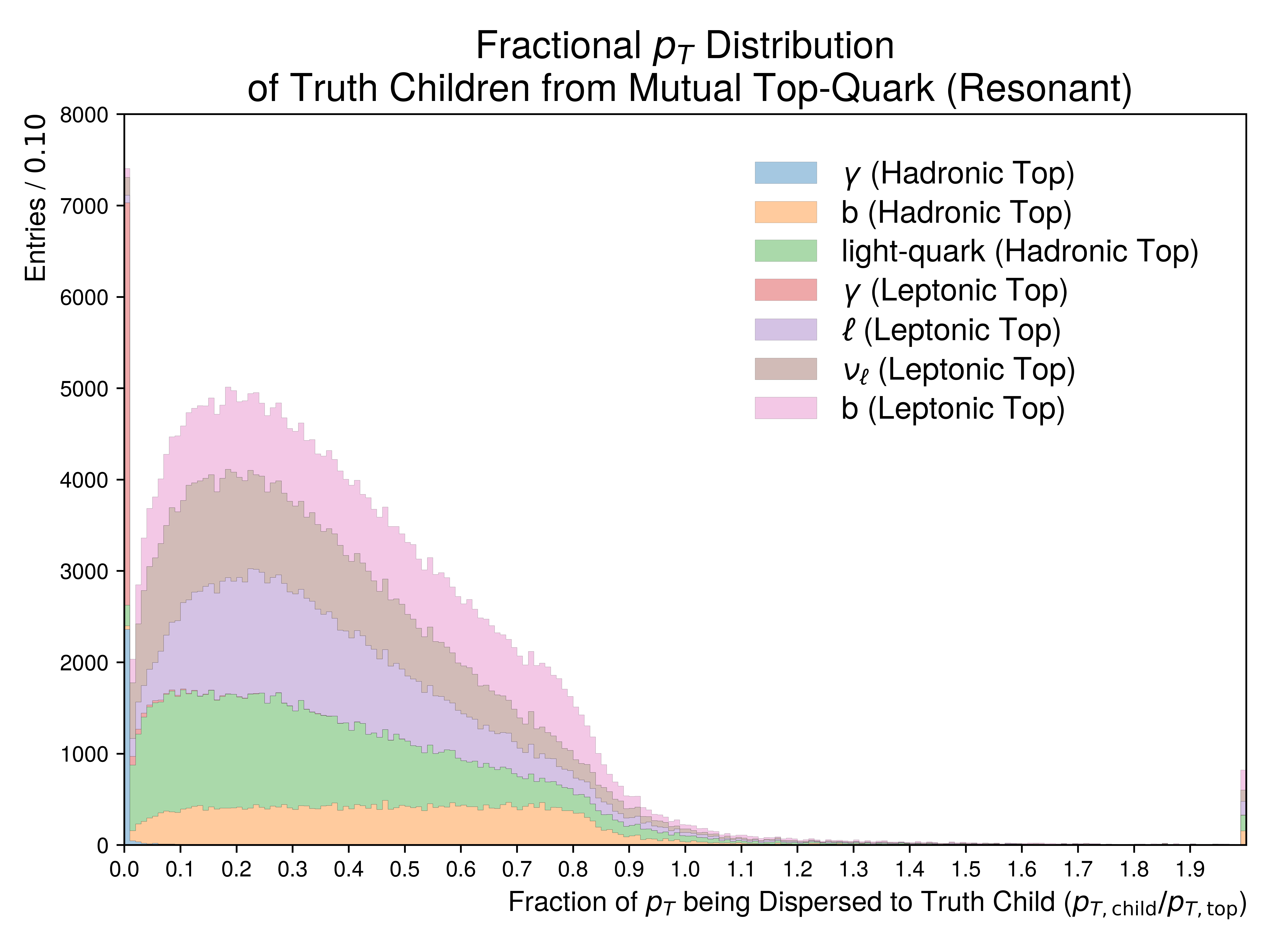

Mass Point: 800 GeV

../../../_images/Figure.3.r4.png

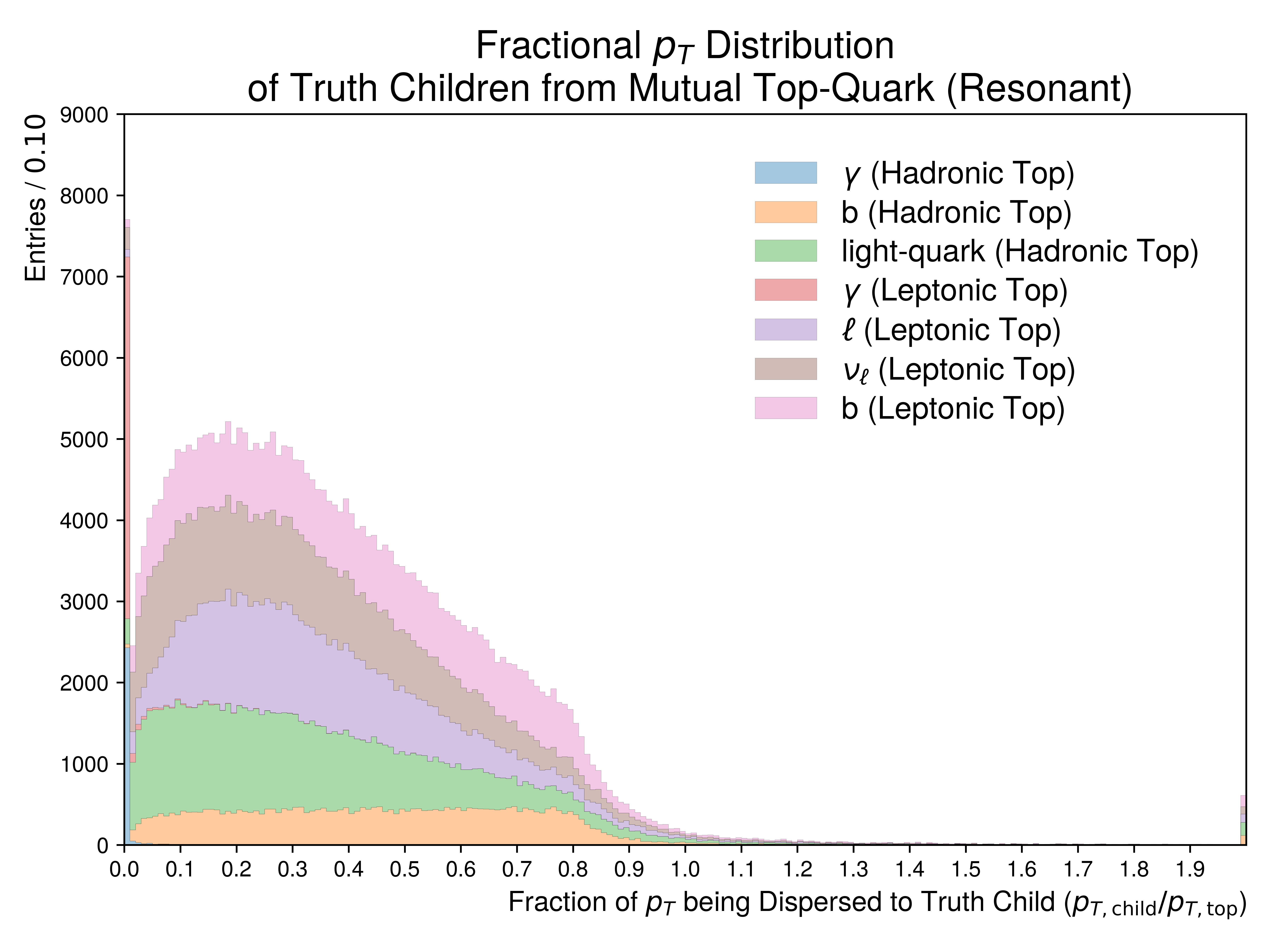

Mass Point: 900 GeV

../../../_images/Figure.3.r5.png

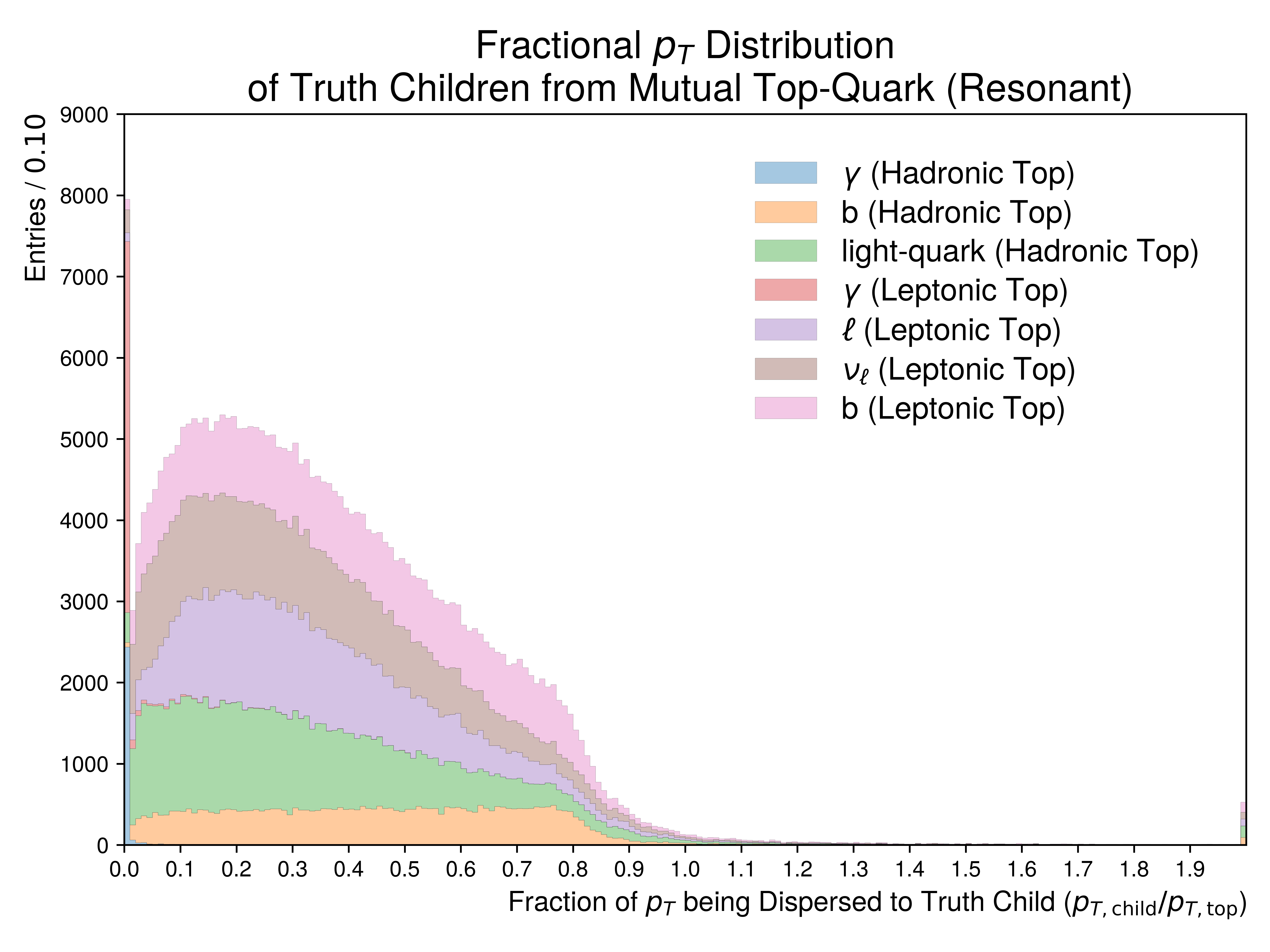

Mass Point: 1000 GeV

../../../_images/Figure.3.r6.png
