Figure.5.d

A set of figures illustrating the formed invariant mass of the top-quark from truth jets being matched leptonically decaying tops. The underlying distributions are partitioned into the number of tops contributing to a given matched truth jet. These plots aims to illustrate cases, where a truth jet can be shared between adjacent tops. For this matching scheme the truth children are used to add the missing the neutrinos and leptons.

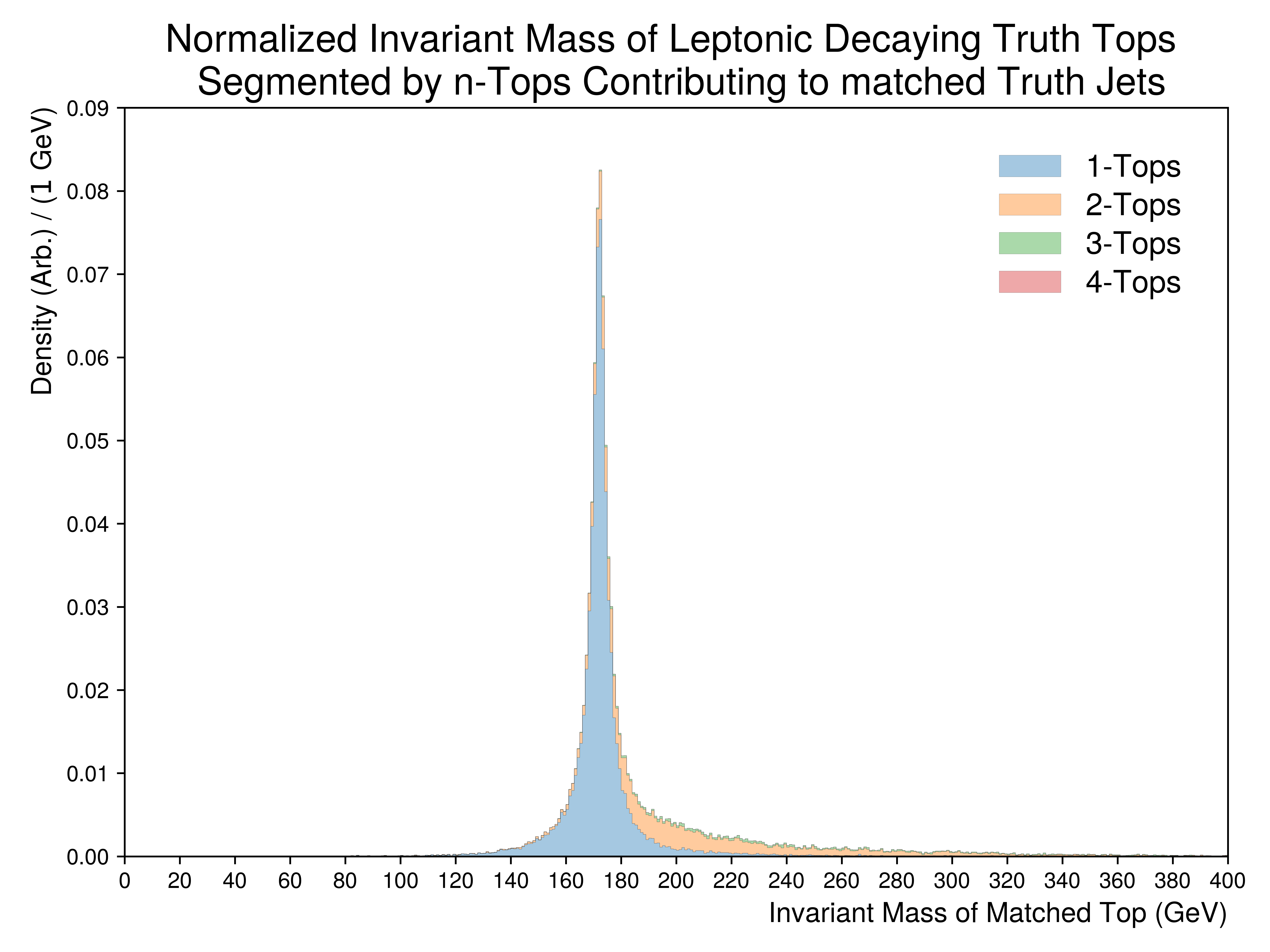

Mass Point: 400 GeV

../../../_images/Figure.5.d2.png

Mass Point: 500 GeV

../../../_images/Figure.5.d3.png

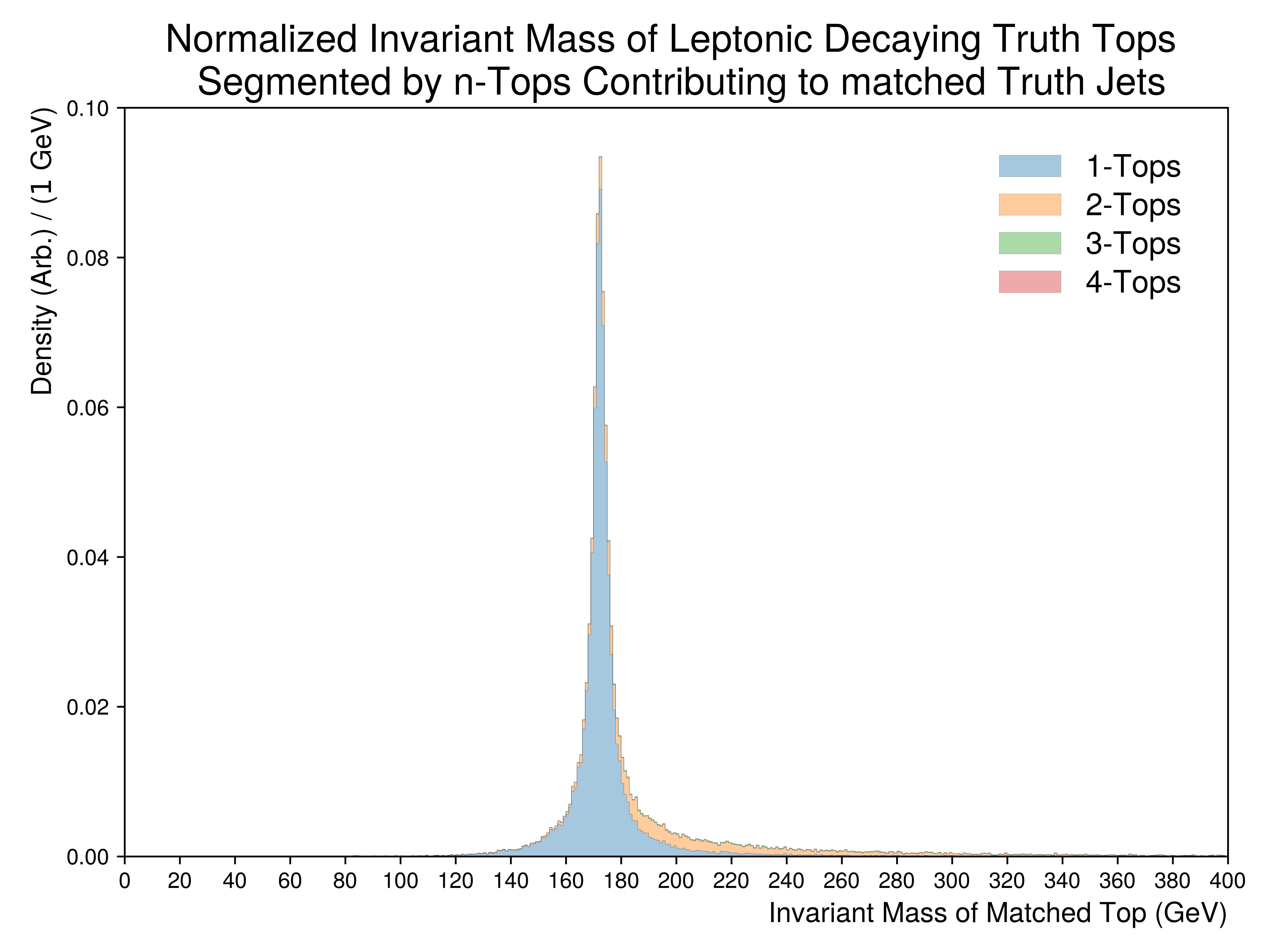

Mass Point: 600 GeV

../../../_images/Figure.5.d4.png

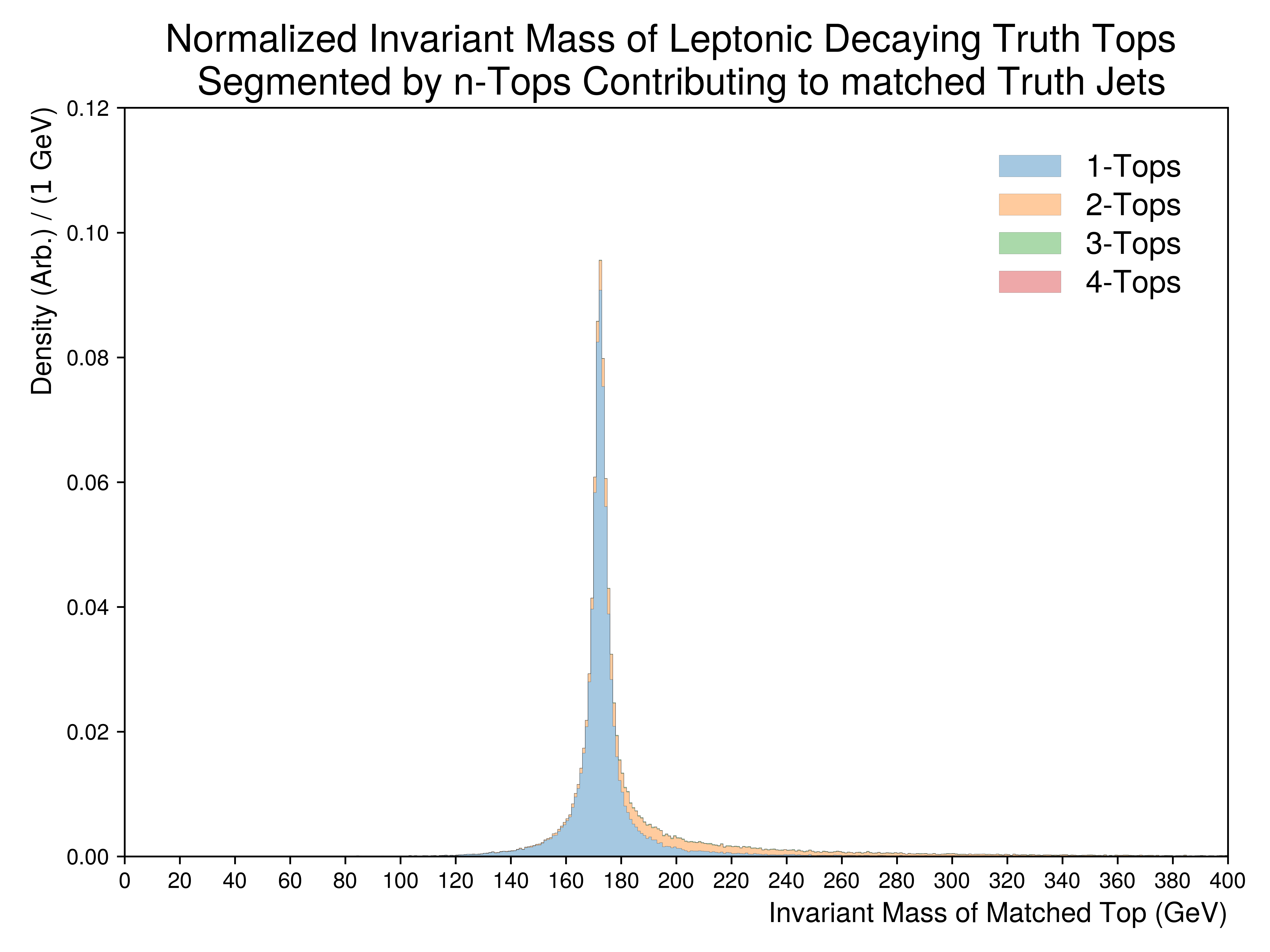

Mass Point: 700 GeV

../../../_images/Figure.5.d5.png

Mass Point: 800 GeV

../../../_images/Figure.5.d6.png

Mass Point: 900 GeV

../../../_images/Figure.5.d7.png

Mass Point: 1000 GeV

../../../_images/Figure.5.d8.png
