Figure.5.l

Heat-map representations of Figure 7.f as a function of Resonance (Hadronic) Top Transverse Momenta and the $\Delta R$ between Truth-Jets’s originating from Mutual Tops.

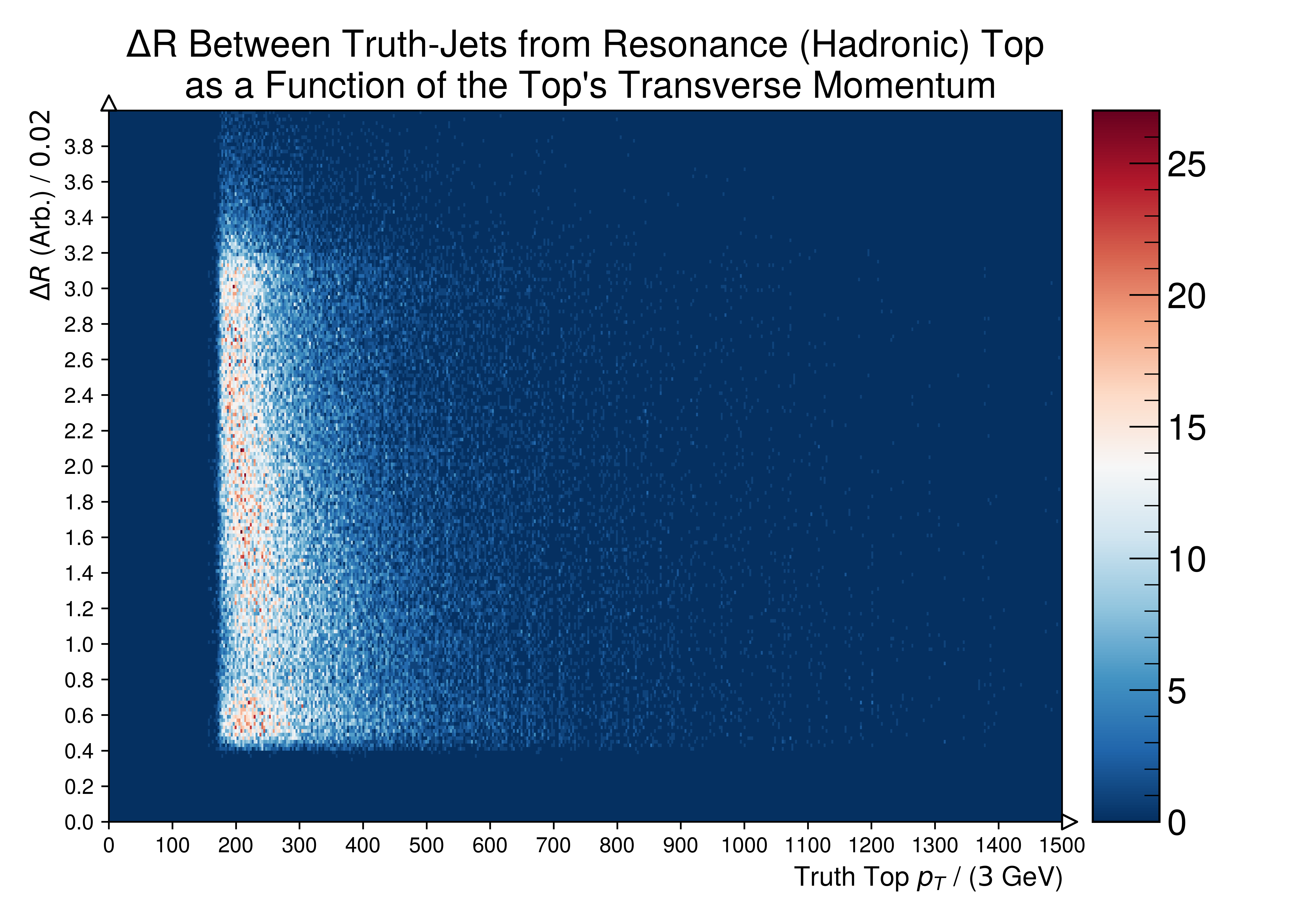

Mass Point: 400 GeV

../../../_images/Figure.5.l.png

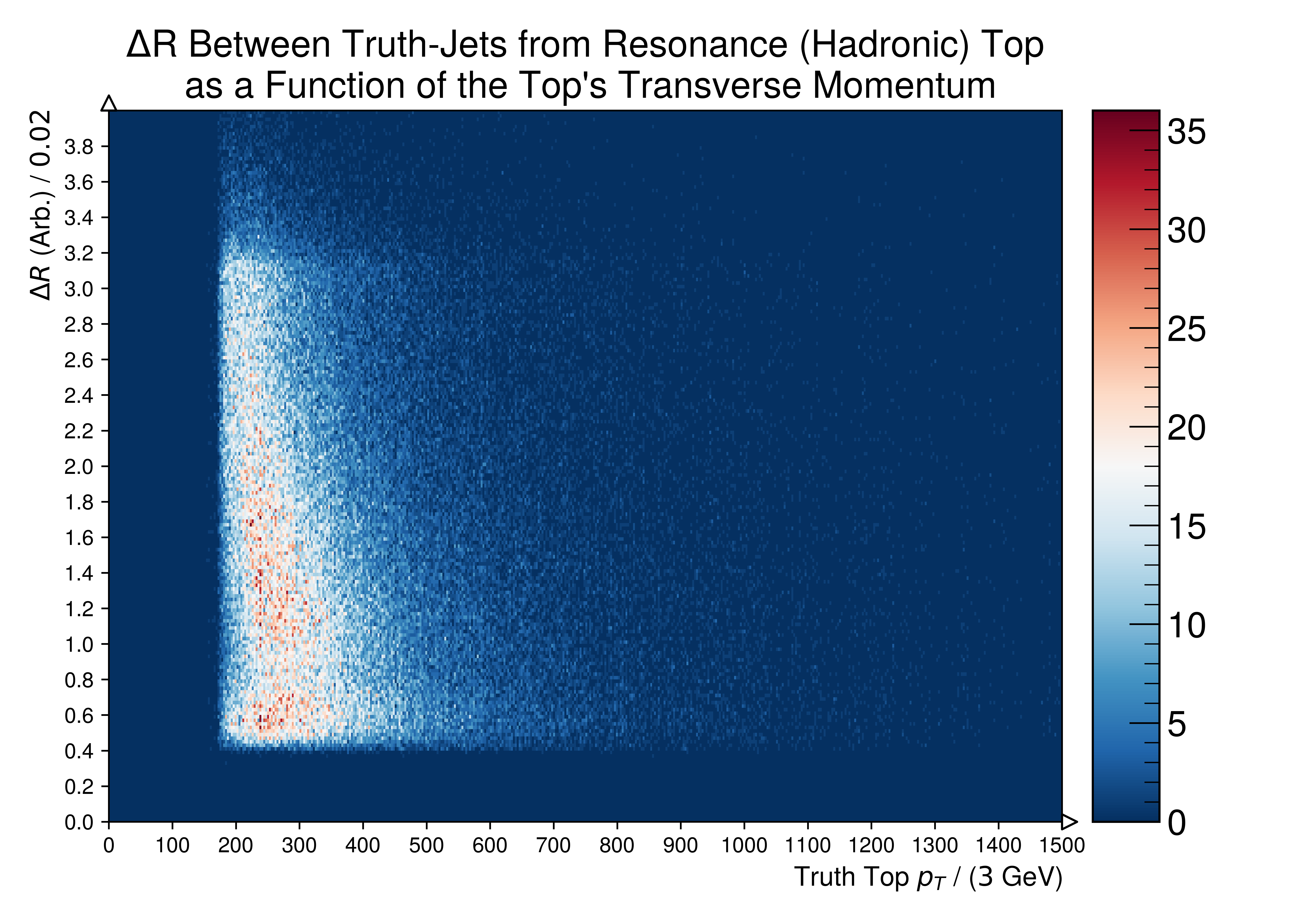

Mass Point: 500 GeV

../../../_images/Figure.5.l1.png

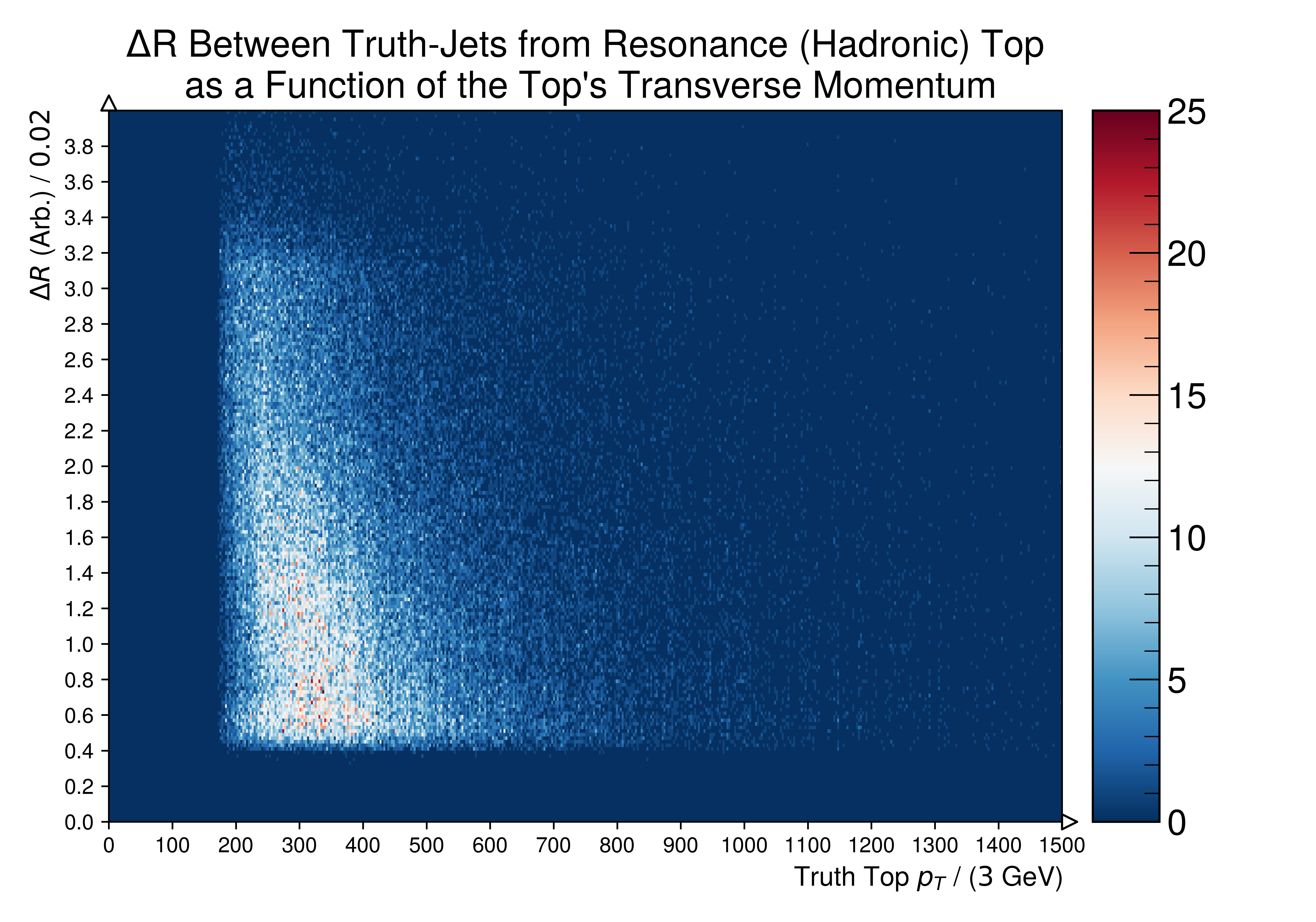

Mass Point: 600 GeV

../../../_images/Figure.5.l2.png

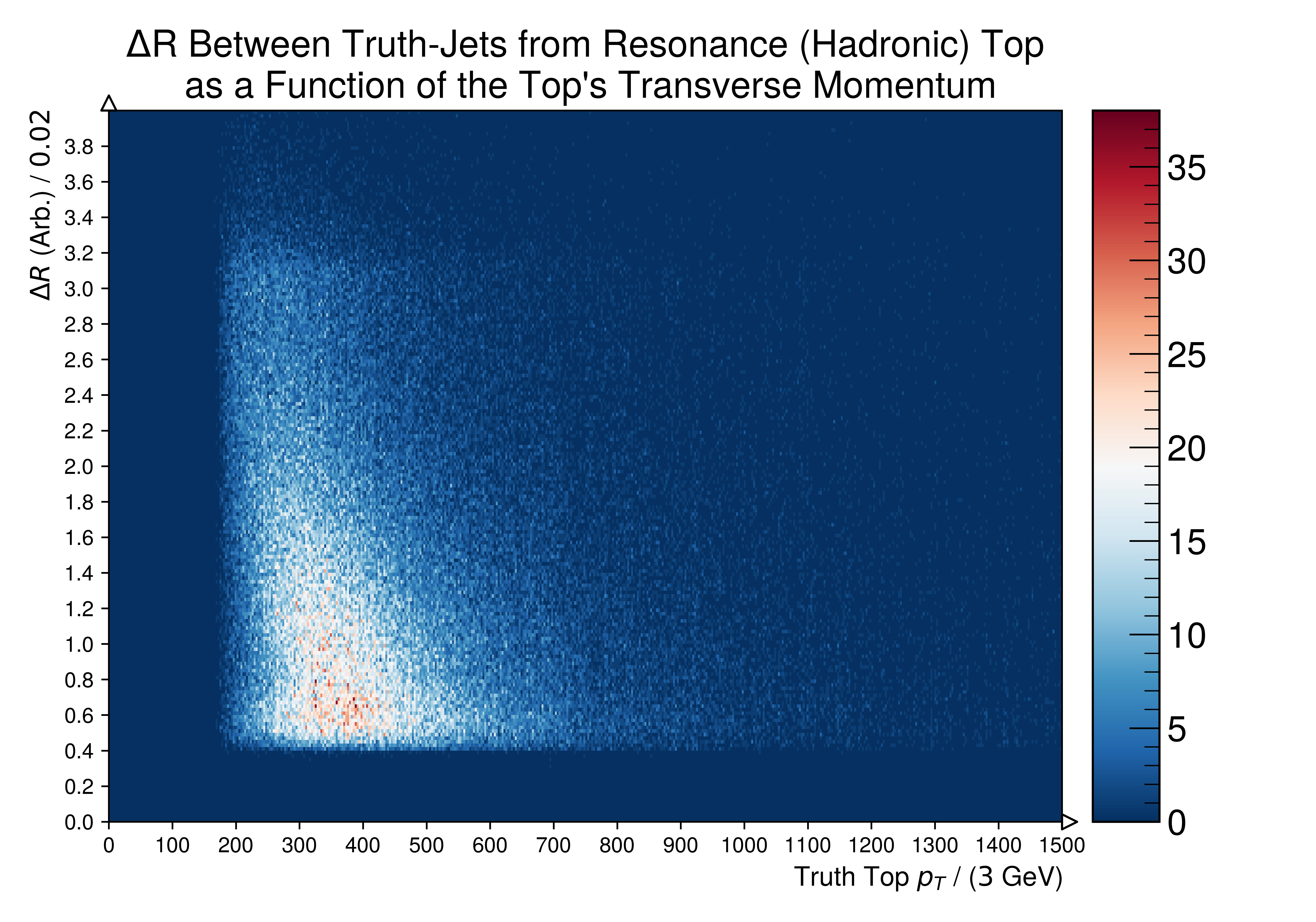

Mass Point: 700 GeV

../../../_images/Figure.5.l3.png

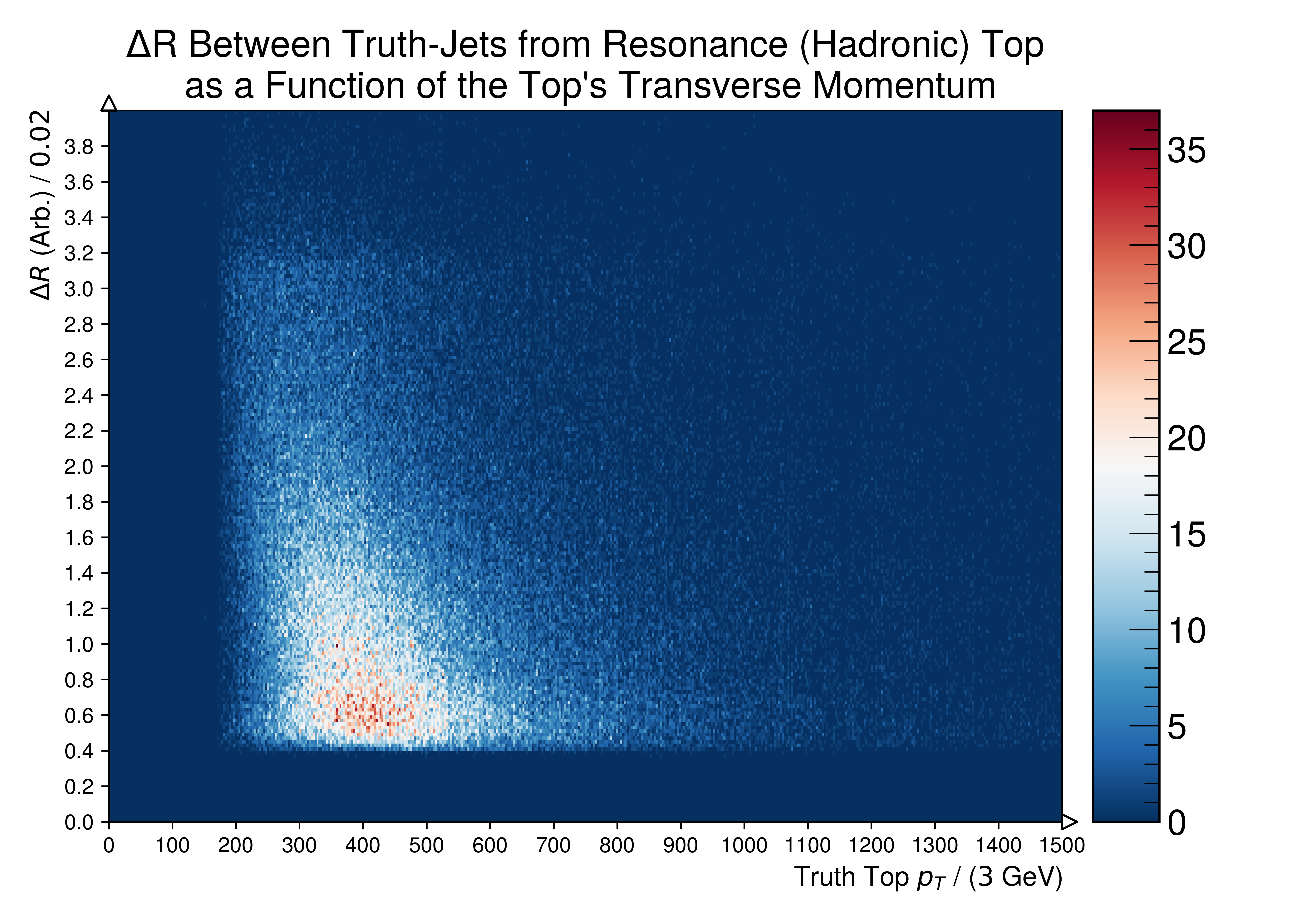

Mass Point: 800 GeV

../../../_images/Figure.5.l4.png

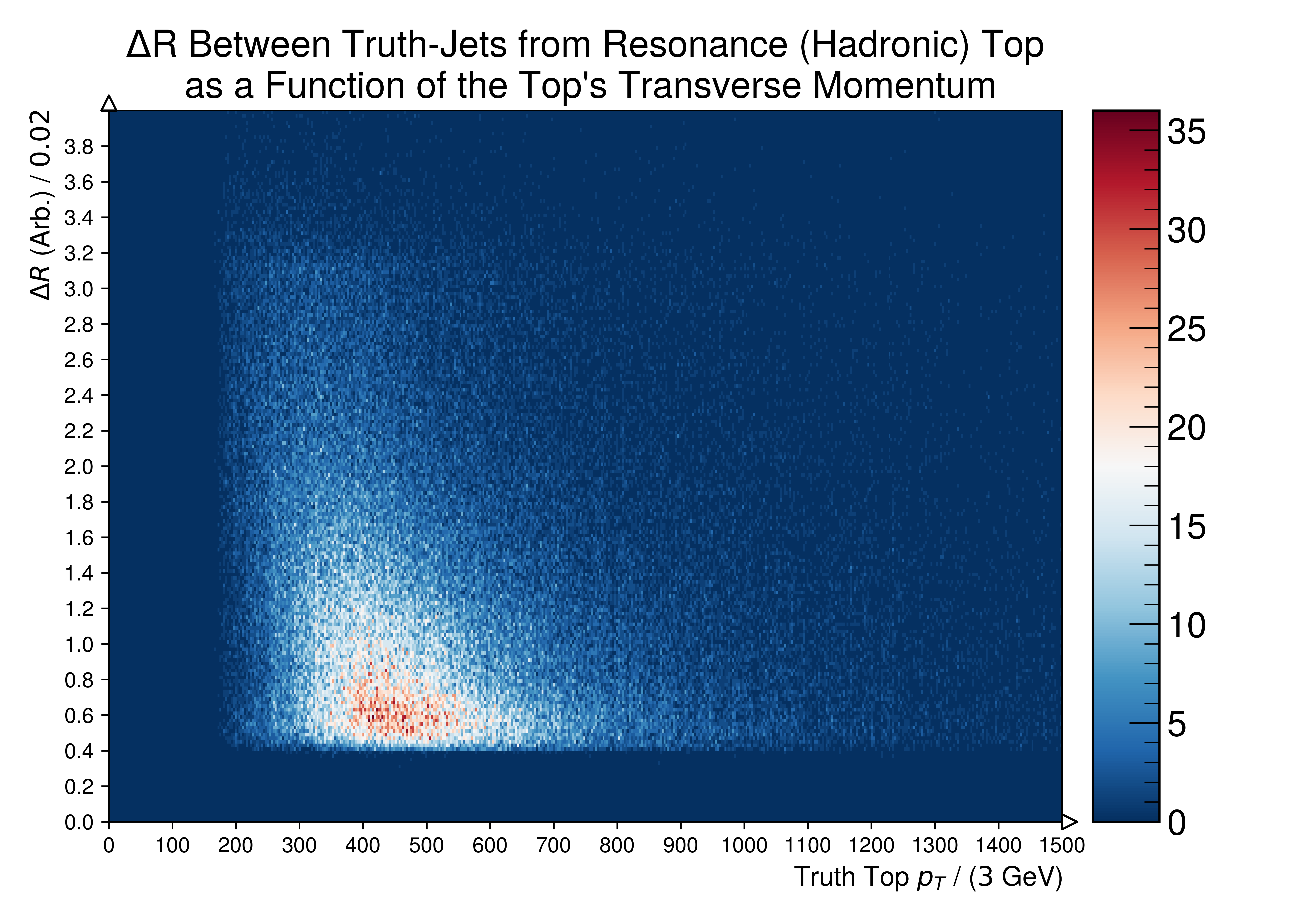

Mass Point: 900 GeV

../../../_images/Figure.5.l5.png

Mass Point: 1000 GeV

../../../_images/Figure.5.l6.png
