Top Kinematics
Studies relating to the kinematics of the tops produced from the resonance and their corresponding spectator counterparts.

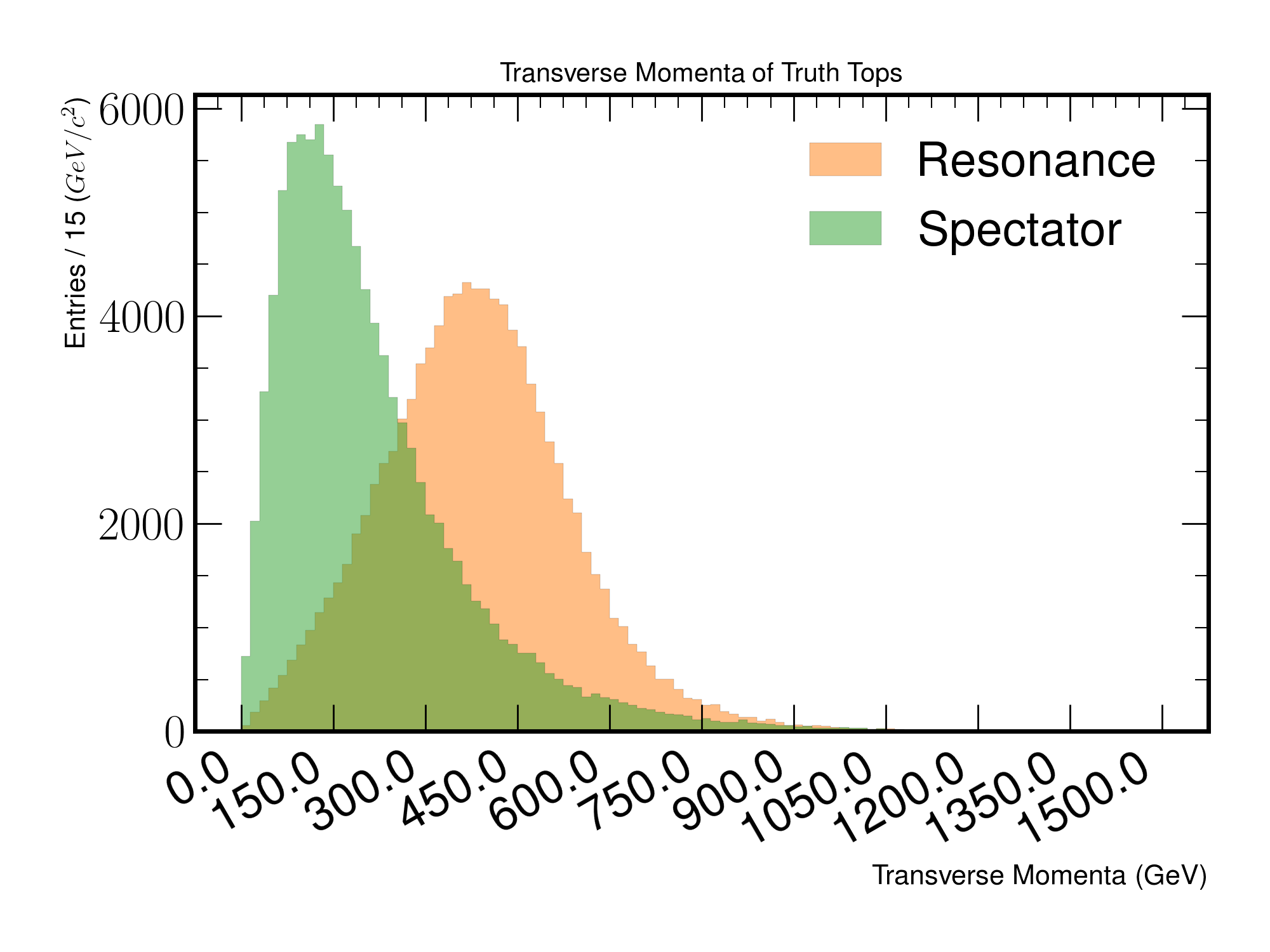

Figure 3.a
A figure depicting the transverse momenta of spectator and resonance tops.

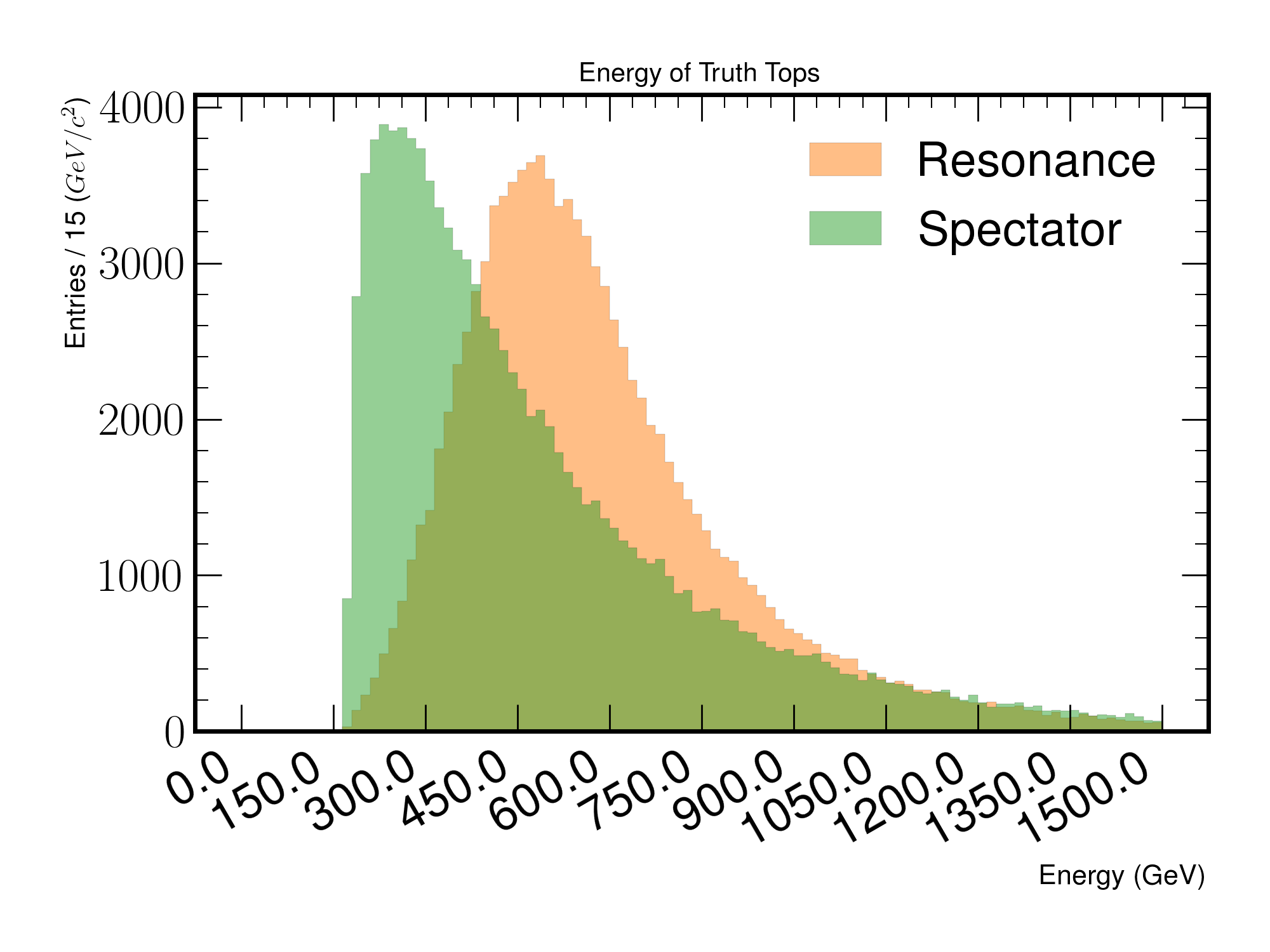

Figure 3.b
A figure depicting the energy of spectator and resonant tops.

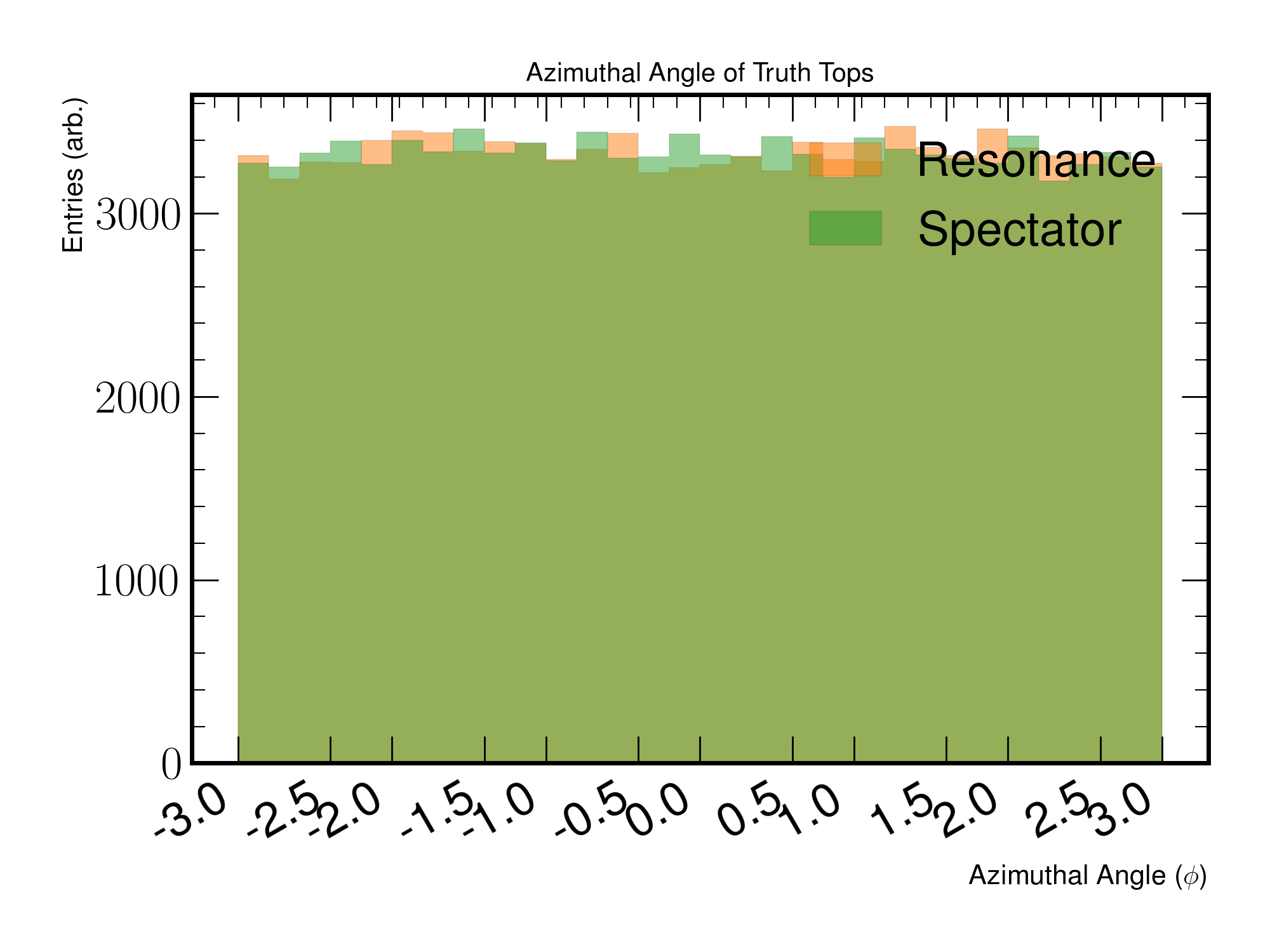

Figure 3.c
A figure depicting the azimuthal angle of spectator and resonant tops.

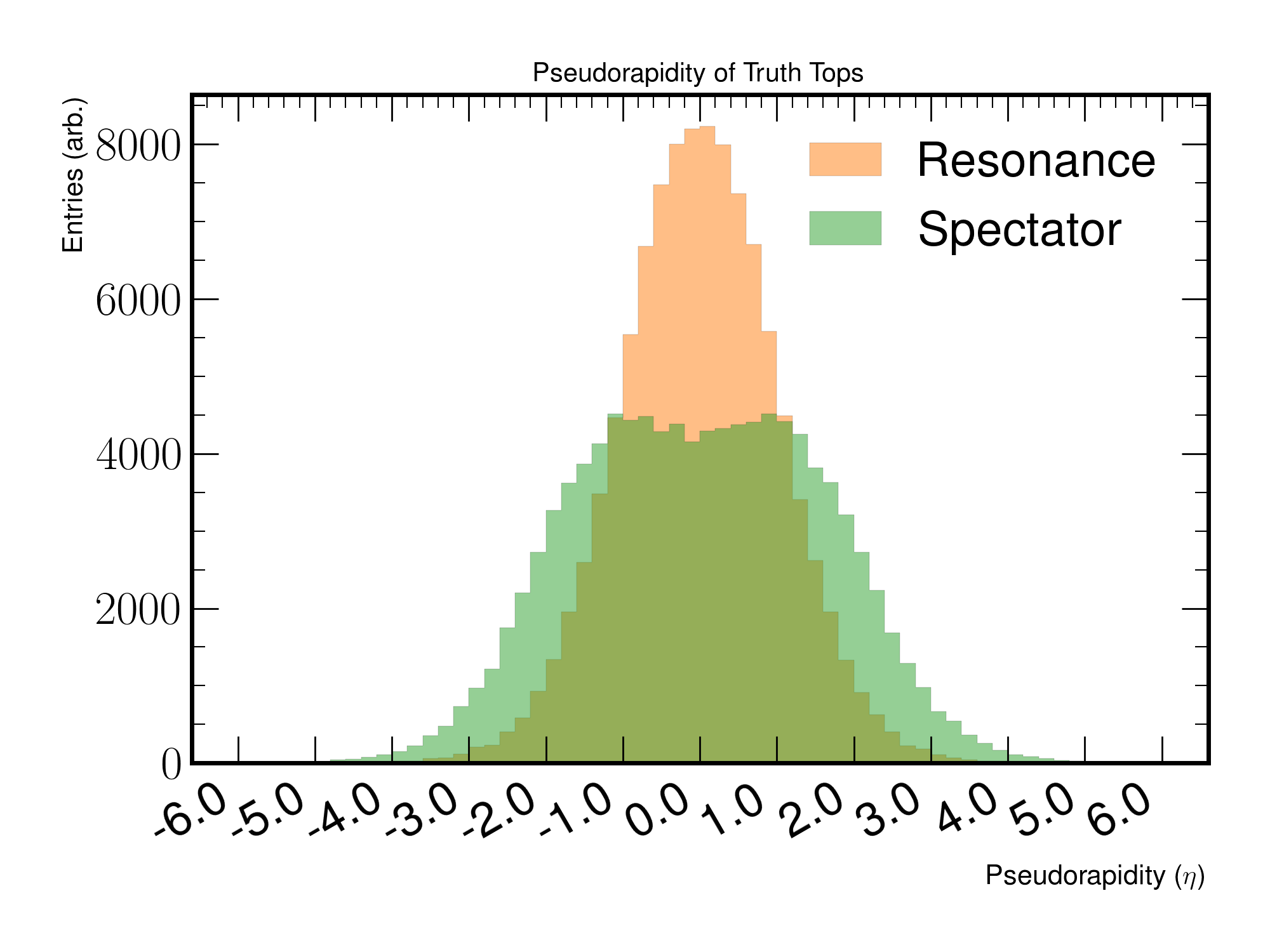

Figure 3.d
A figure depicting the pseudorapidity of spectator and resonant tops.

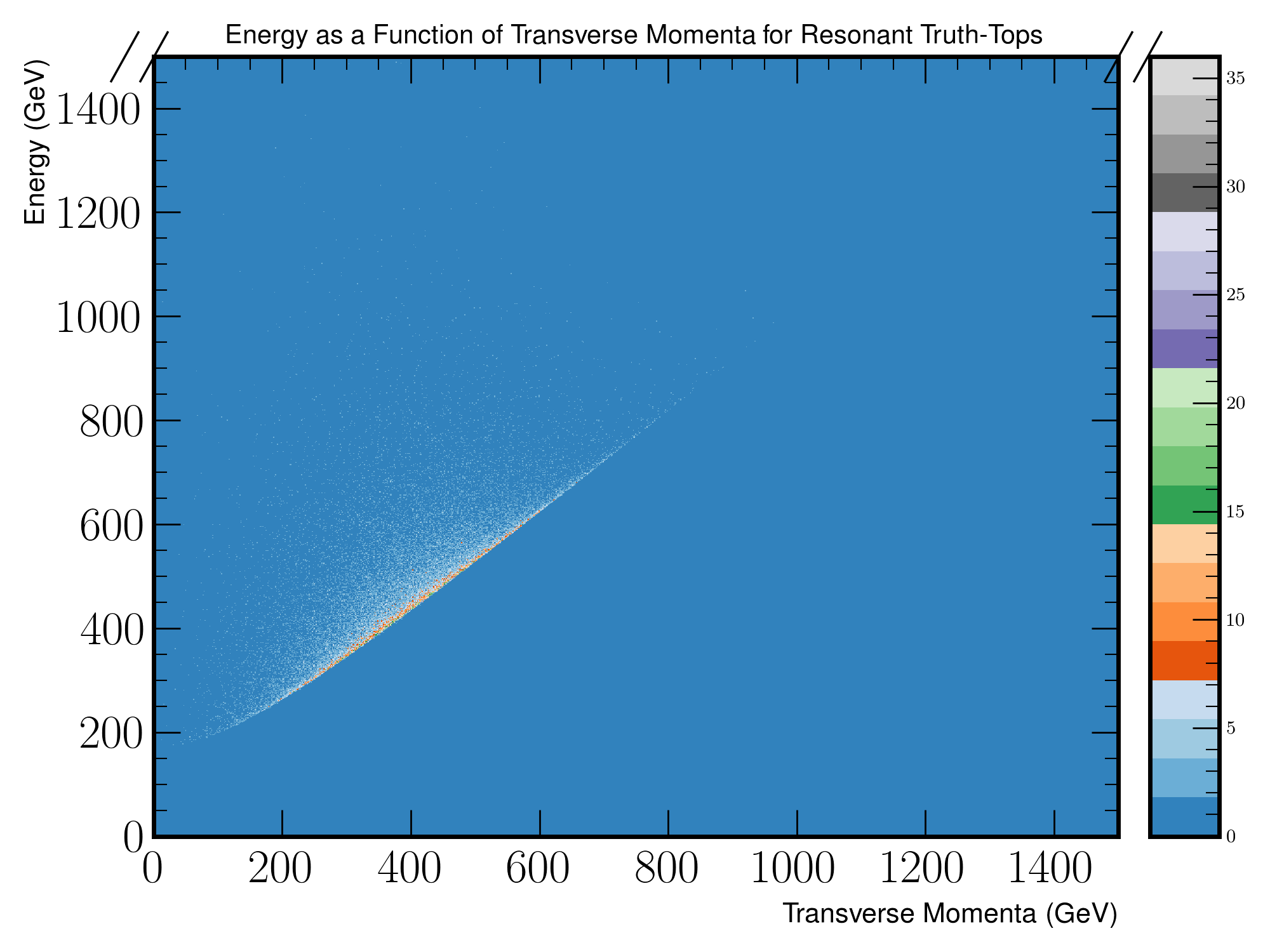

Figure 3.e
A two dimensional heat-map of energy against transverse momenta for resonant tops.

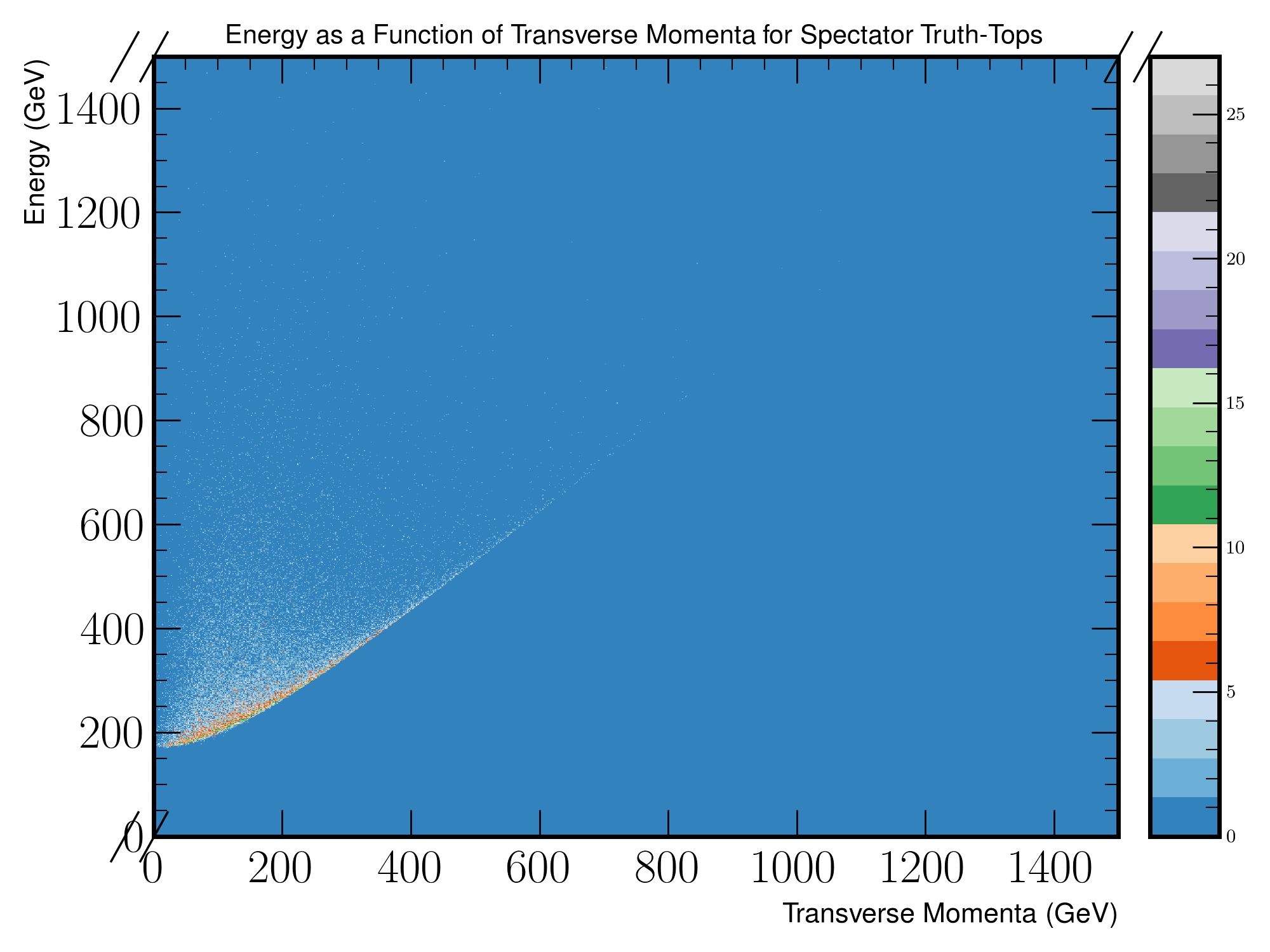

Figure 3.f
A two dimensional heat-map of energy against transverse momenta for spectator tops.

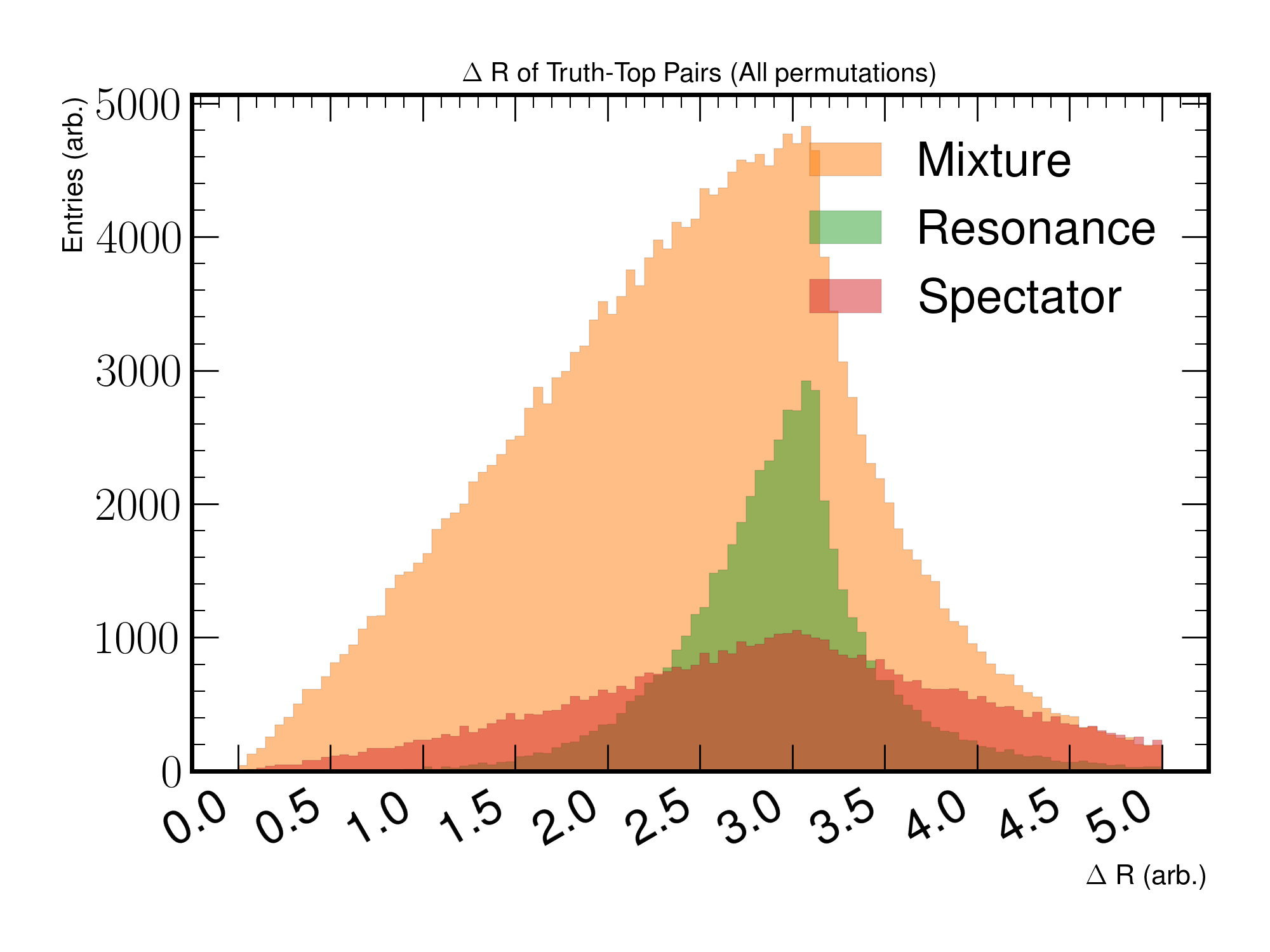

Figure 3.g
A distribution plot of the
between truth-top pairs.
For plots with Resonance and Spectator titles, top-pairs are correctly assigned, otherwise they are labelled as a Mixture.

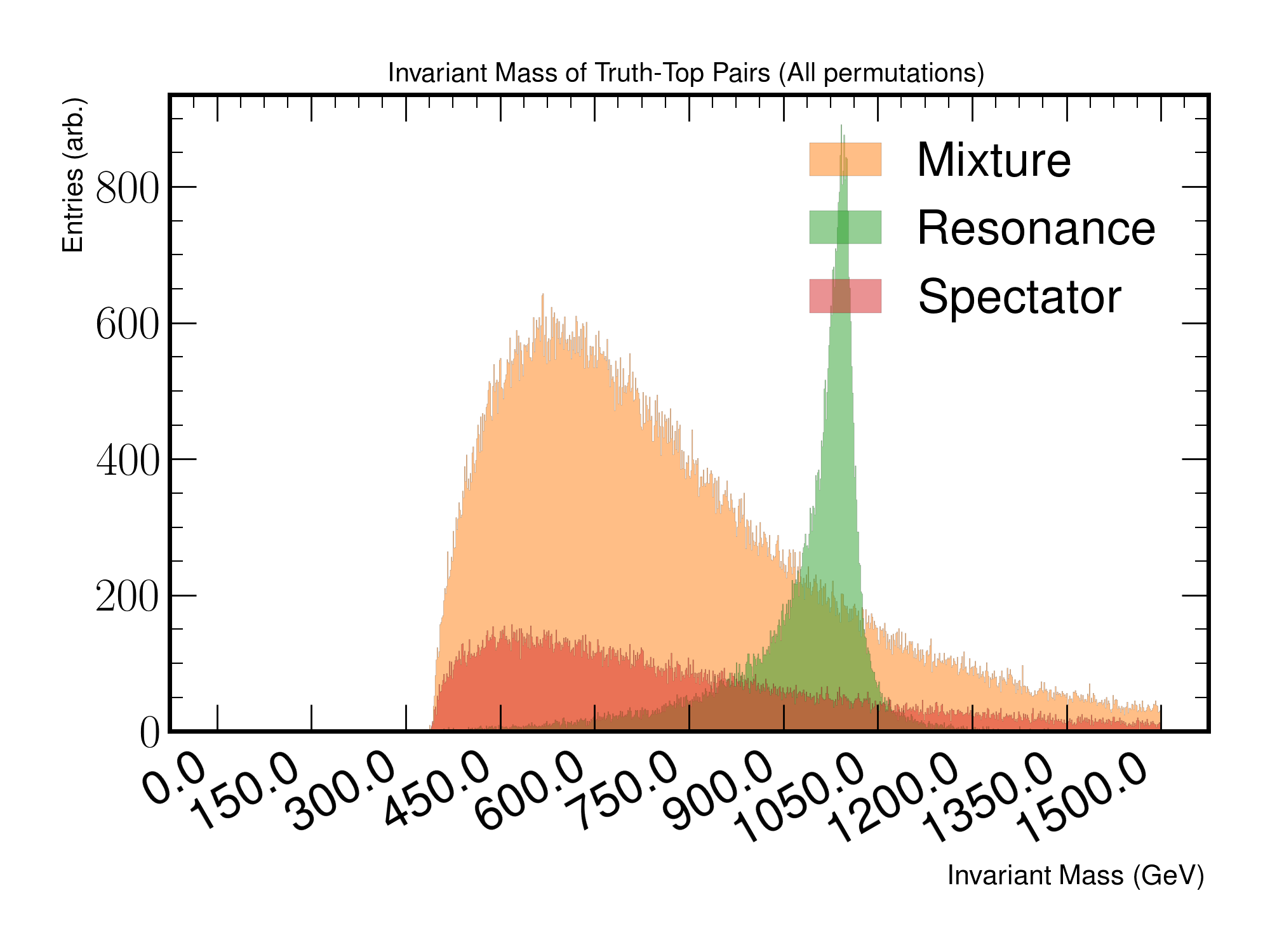

Figure 3.h
A distribution plot of the invariant mass produced when combining truth-top pairs. For plots with Resonance and Spectator titles, top-pairs are correctly assigned, otherwise they are labelled as a Mixture.

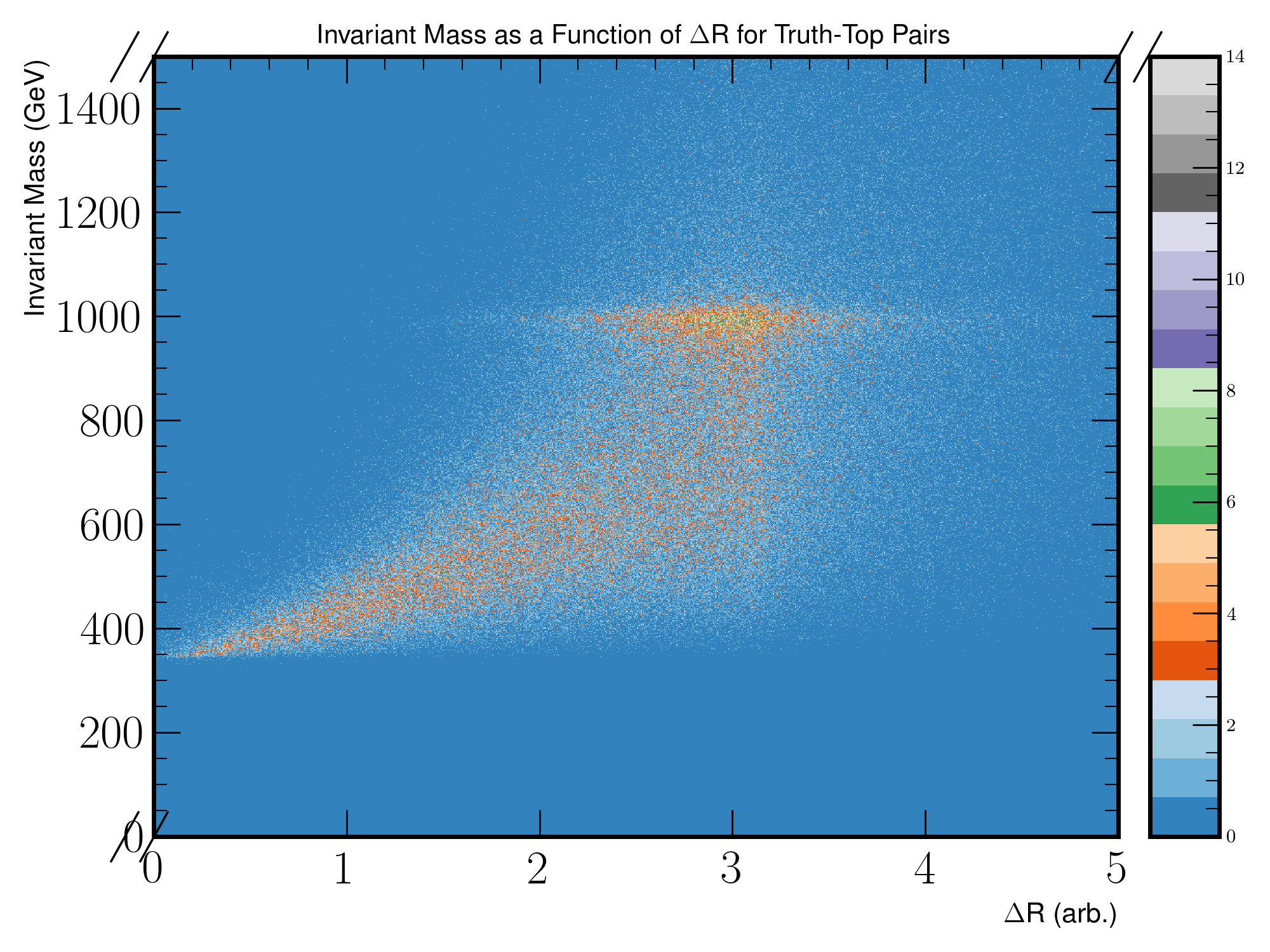

Figure 3.j
A two dimensional head-map of the invariant mass as a function of .
For this plot, all possible truth-top pair permutations are used to compute the invariant mass and the .
