Children-Kinematics

A set of studies relating to the decay children of truth-tops.

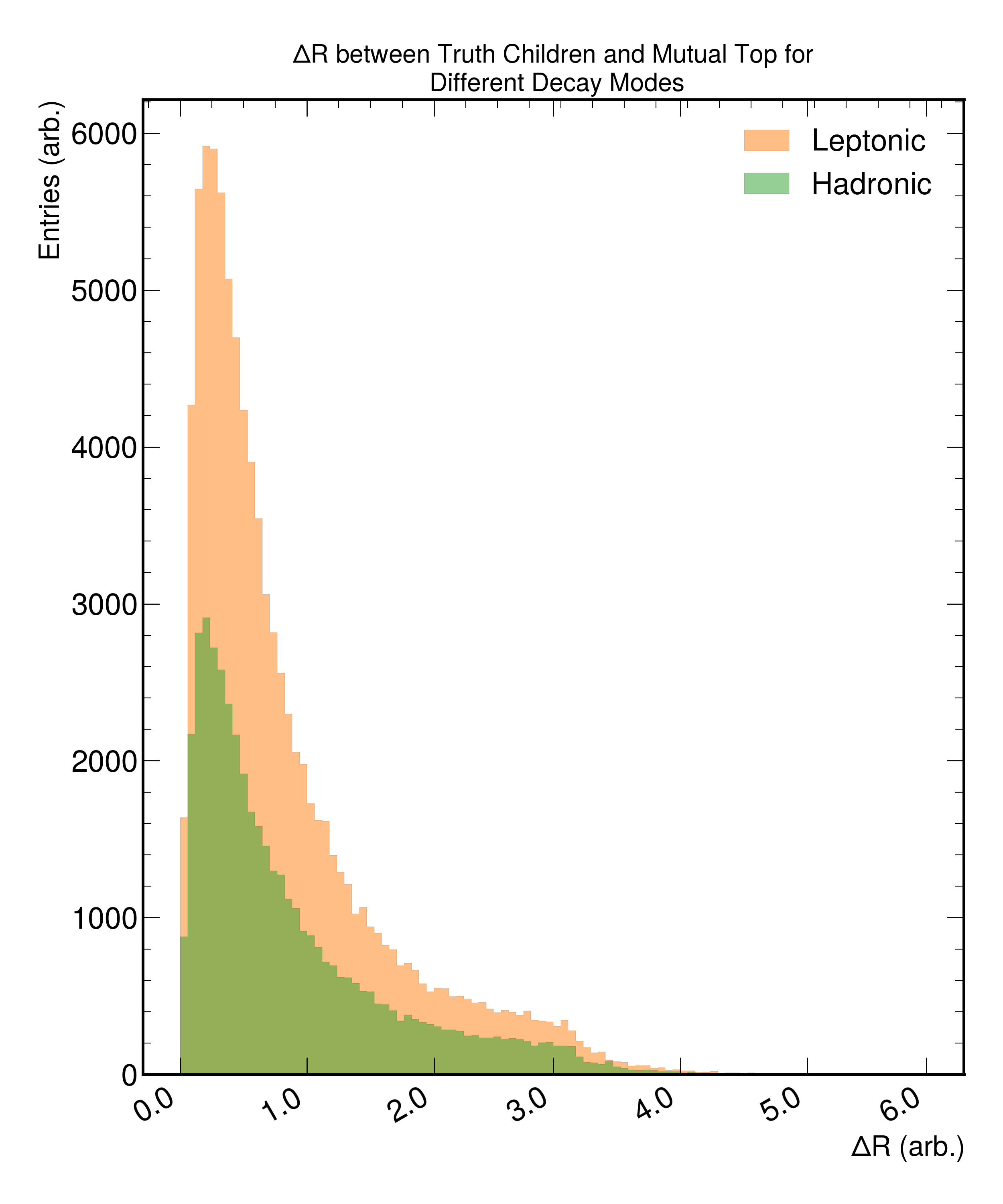

Figure 2.a

../../../../_images/Figure.2.a3.png

A histogram plot of the \Delta R between the origin truth top and associated truth children. The plot is partitioned into the top decay channel being either hadronic or leptonic.

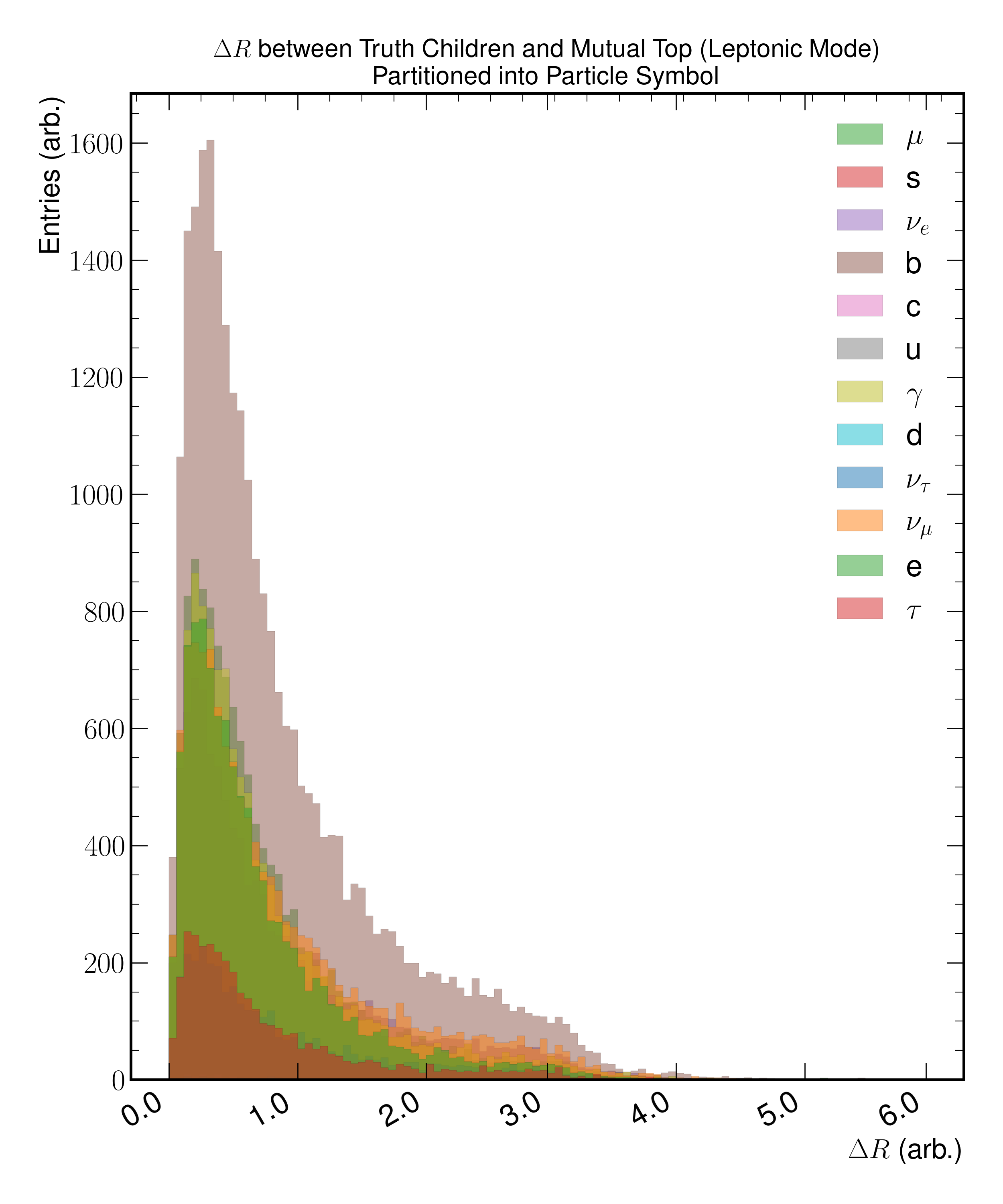

Figure 2.b

../../../../_images/Figure.2.b3.png

A histogram plot of the \Delta R between the origin truth top and associated children for the leptonic decay mode. The plot is partitioned into the particle symbols.

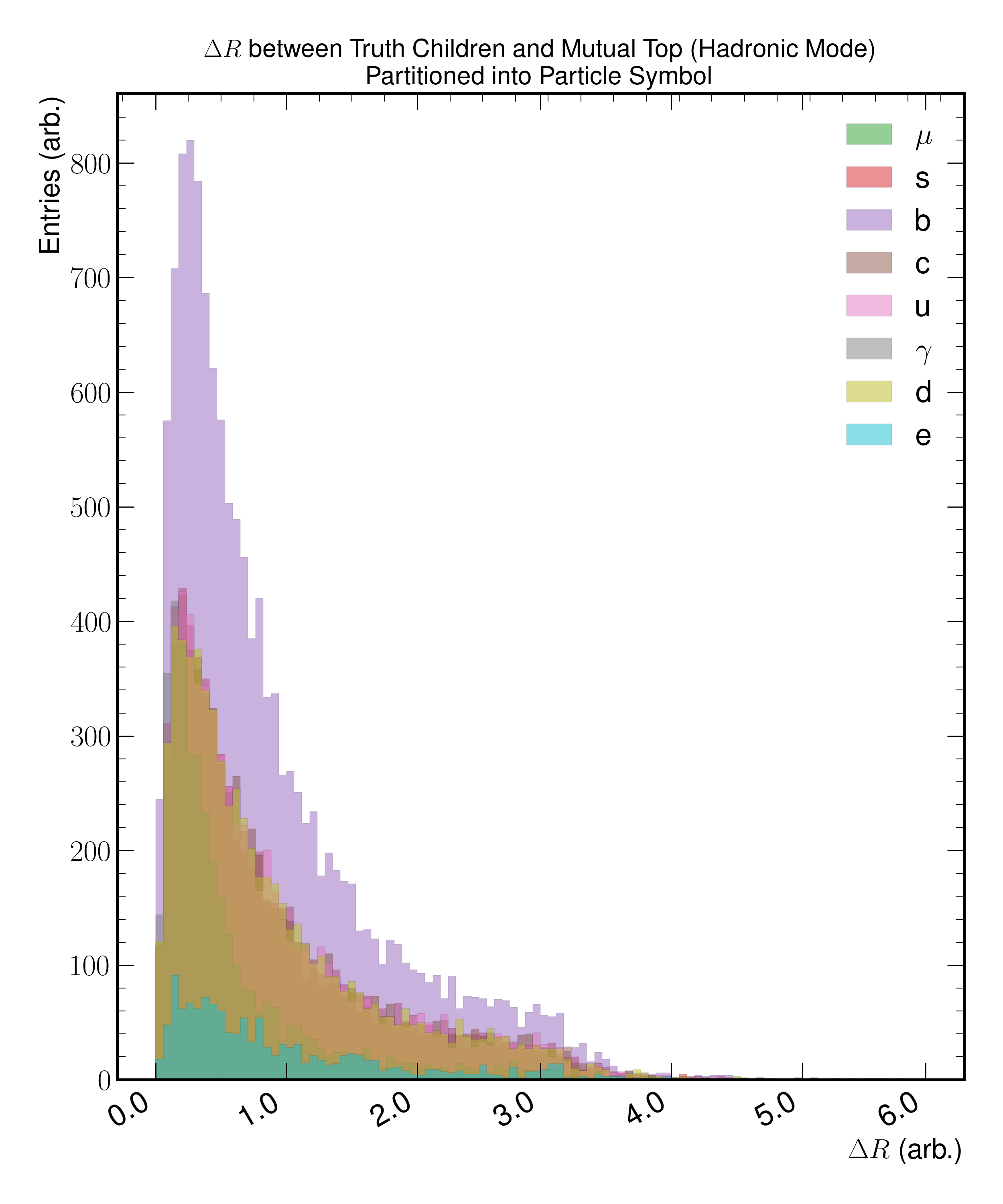

Figure 2.c

../../../../_images/Figure.2.c3.png

A histogram plot of the \Delta R between the origin truth top and associated children for the hadronic decay mode. The plot is partitioned into the particle symbols.

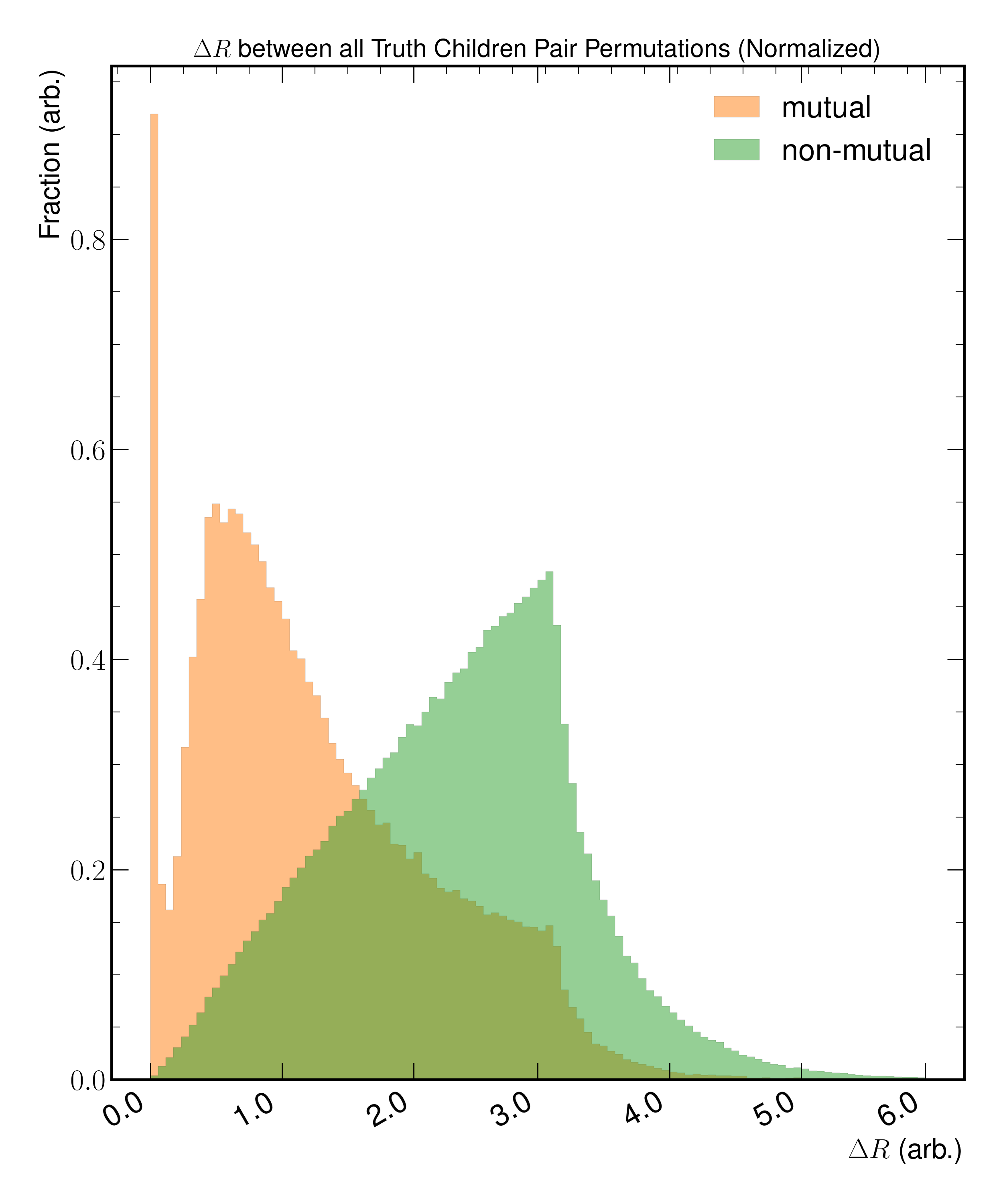

Figure 2.d

../../../../_images/Figure.2.d3.png

A histogram plot of the \Delta R for all possible truth children pair permutations. The plot is partitioned into whether the truth children originated from a mutual top or if there was a cross over.
